Turn Signal Flasher Assembly On-Vehicle Inspection

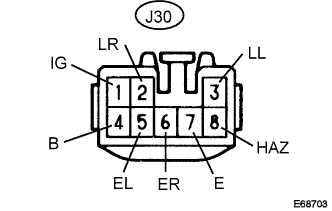

Disconnect the J30 connector.

Measure the voltage according to the value(s) in the table below (wire harness side connector).

Standard voltage:

Tester Connection	Condition	Specified Condition
J30-1 (IG) - Body ground	Engine switch off	Below 1 V
J30-1 (IG) - Body ground	Engine switch on (IG)	10 to 14 V
J30-4 (B) - Body ground	Always	10 to 14 V
J30-7 (E) - Body ground	Always	Below 1 V

Reconnect the connector.

Measure the voltage according to the value(s) in the table below.

Standard voltage:

Tester Connection	Condition	Specified Condition
J30-2 (LR) - Body ground	Hazard warning switch OFF	Below 1 V
J30-2 (LR) - Body ground	Hazard warning switch ON	10 to 14 V (60 to 120 times per minute)
J30-2 (LR) - Body ground	Engine switch on (IG) and turn signal switch (right turn) OFF	Below 1 V
J30-2 (LR) - Body ground	Engine switch on (IG) and turn signal switch (right turn) ON	10 to 14 V (60 to 120 times per minute)
J30-3 (LL) - Body ground	Hazard warning switch OFF	Below 1 V
J30-3 (LL) - Body ground	Hazard warning switch ON	10 to 14 V (60 to 120 times per minute)
J30-3 (LL) - Body ground	Engine switch on (IG) and turn signal switch (left turn) OFF	Below 1 V
J30-3 (LL) - Body ground	Engine switch on (IG) and turn signal switch (left turn) ON	10 to 14 V (60 to 120 times per minute)
J30-5 (EL) - Body ground	Engine switch on (IG) and turn signal switch (left turn) OFF	10 to 14 V
J30-5 (EL) - Body ground	Engine switch on (IG) and turn signal switch (left turn) ON	Below 1 V
J30-6 (ER) - Body ground	Engine switch on (IG) and turn signal switch (right turn) OFF	10 to 14 V
J30-6 (ER) - Body ground	Engine switch on (IG) and turn signal switch (right turn) ON	Below 1 V
J30-8 (HAZ) - Body ground	Hazard warning switch OFF	10 to 14 V
J30-8 (HAZ) - Body ground	Hazard warning switch ON	Below 1 V
