Luggage Compartment Door Opener Outer Switch Inspection

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Door Lock. Lexus Is250, Is220D. Gse20 Ale20

  1. INSPECT LUGGAGE KEY ELECTRICAL SWITCH

Luggage Compartment Door Opener Outer Switch -- Inspection



1. INSPECT LUGGAGE KEY ELECTRICAL SWITCH


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Luggage Compartment Door Opener Outer Switch Inspection

  1. Disconnect the switch connector.

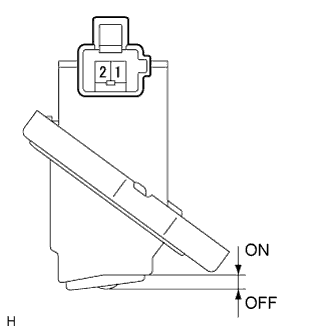

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester connection
    		Condition
    		Specified condition
    1 - 2
    		Luggage compartment open switch not pushed (OFF)
    		10 kΩor higher
    Luggage compartment open switch pushed (ON)
    		Below 1 Ω
