Audio Terminal Installation

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Audio Visual. Lexus Is250, Is220D. Gse20 Ale20

  1. INSTALL AUDIO TERMINAL

  2. INSTALL CONSOLE BOX

  3. INSTALL CONSOLE BOX REGISTER ASSEMBLY

  4. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY

  5. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)

  6. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)

  7. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)

  8. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)

  9. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)

  10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)

  11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)

Audio Terminal -- Installation



1. INSTALL AUDIO TERMINAL


    Lexus Is250, Is220D. Gse20 Ale20.Audio Visual.Audio And Visual System.Audio Terminal Installation

  1. Engage the 2 claws and install the audio terminal.

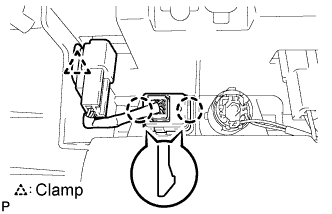

  1. Connect the connector clamp.



2. INSTALL CONSOLE BOX


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 2 claws and 2 clips.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Install the 2 bolts <C>.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Install the 2 bolts <C>.

  1. Connect the connector.



    Lexus Is250, Is220D. Gse20 Ale20.Audio Visual.Audio And Visual System.Audio Terminal Installation

  1. Connect the connectors.

  1. Engage the 2 clamps.

  1. Install the 2 bolts <C>.



3. INSTALL CONSOLE BOX REGISTER ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 2 claws and 4 clips, and then install the console box register assembly.

  1. Install the rear ash receptacle assembly.



4. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Audio Visual.Audio And Visual System.Audio Terminal Installation

  1. Connect the connectors.

  1. Insert the protruding parts of the front ash receptacle sub-assembly into the 2 guide holes as shown in the illustration.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Install the front ash receptacle sub-assembly with the 2 screws <F>.



5. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 6 clips.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Close the snap.



6. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 7 claws and 2 clips.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Close the snap.



7. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)


    Lexus Is250, Is220D. Gse20 Ale20

  1. Connect the connectors.

  1. Engage the 8 clips and install the console panel sub-assembly.



8. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the claw and 2 clips, and then install the upper No. 2 console panel garnish.



9. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the claw and 2 clips, and then install the upper No. 1 console panel garnish.



10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)


11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
