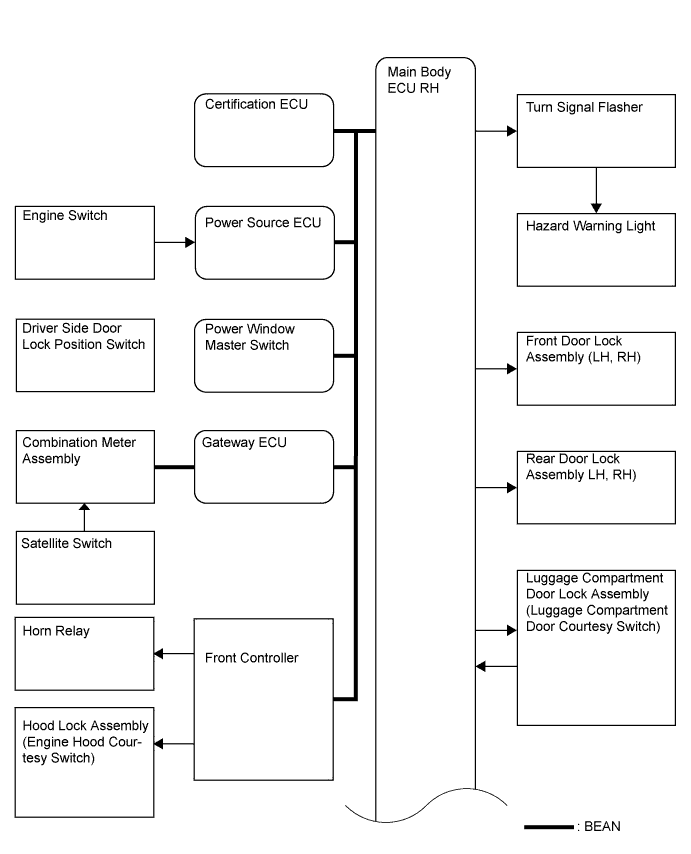

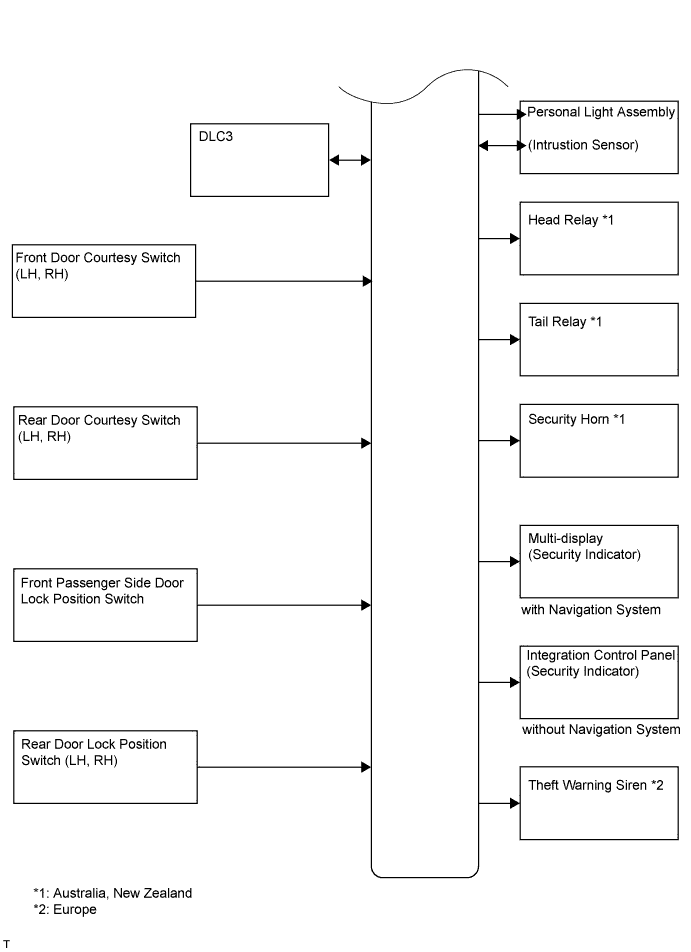

Theft Deterrent System (W/ Intrusion Sensor) System Diagram

Securities. Lexus Is250, Is220D. Gse20 Ale20
Theft Deterrent. Lexus Is250, Is220D. Gse20 Ale20

Theft Deterrent System (W/ Intrusion Sensor) -- System Diagram



Lexus Is250, Is220D. Gse20 Ale20.Theft Deterrent.Theft Deterrent System (W/ Intrusion Sensor).Theft Deterrent System (W/ Intrusion Sensor) System Diagram


Lexus Is250, Is220D. Gse20 Ale20.Theft Deterrent.Theft Deterrent System (W/ Intrusion Sensor).Theft Deterrent System (W/ Intrusion Sensor) System Diagram


Transmitting ECU
(Transmitter)
Receiving ECU
(Receiver)
Signal
Line
Certification ECU
Main body ECU RH
IG relay operating states
BEAN
Power source ECU
Main body ECU RH
Engine switch signal
BEAN
Power window master switch
Main body ECU RH
Front door lock signal
BEAN
Front controller
Main body ECU RH
Engine hood courtesy signal
BEAN
Combination Meter Assembly
Main body ECU RH
Intrusion sensor ON/OFF request
BEAN
Main body ECU RH
Front controller
Vehicle horn sound request
BEAN
