Vvt Sensor On-Vehicle Inspection

Engine. Lexus Is250, Is220D. Gse20 Ale20
4Gr-Fse Engine Control System. Lexus Is250, Is220D. Gse20 Ale20

  1. INSPECT CHECK VVT SENSOR OUTPUT VOLTAGE

Vvt Sensor -- On-Vehicle Inspection



1. INSPECT CHECK VVT SENSOR OUTPUT VOLTAGE



Lexus Is250, Is220D. Gse20 Ale20.4Gr-Fse Engine Control System.Sfi System.Vvt Sensor On-Vehicle Inspection

  1. Turn the engine switch on (IG).

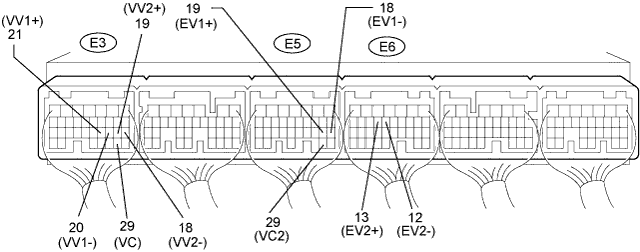

  1. Check the voltage between the terminal.

    Standard voltage:
    Tester Connection
    		Condition
    		Specified Condition
    E3-29 (VC) - Body ground
    		Engine switch on (IG)
    		5 V
    E3-29 (VC2) - Body ground
    		Engine switch on (IG)
    		5 V

  1. While turning the crankshaft pulley by hand, measure the voltage between each terminal. Check that the voltage changes between the Hi range and Lo range shown in the table below.

    Standard voltage:

    Sensor Position
    		Terminal No.
    		Voltage (Hi)
    		Voltage (Lo)
    Bank 1 (Intake side)
    		VV1+ (E3-21) - VV1- (E3-20)
    		3.75 to 4.50 V
    		0.50 to 1.25 V
    Bank 2 (Intake side)
    		VV2+ (E3-19) - VV2- (E3-18)
    		3.75 to 4.50 V
    		0.50 to 1.25 V
    Bank 1 (Exhaust side)
    		EV1+ (E6-19) - EV1- (E36-18)
    		3.75 to 4.50 V
    		0.50 to 1.25 V
    Bank 2 (Exhaust side)
    		EV2+ (E6-13) - EV2- (E6-12)
    		3.75 to 4.50 V
    		0.50 to 1.25 V
