Engine Hood Courtesy Switch Removal

Securities. Lexus Is250, Is220D. Gse20 Ale20
Theft Deterrent. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE COOL AIR INTAKE DUCT SEAL

  2. REMOVE FRONT BUMPER ASSEMBLY

  3. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

  4. REMOVE LOW PITCHED HORN ASSEMBLY

  5. REMOVE HOOD LOCK CONTROL CABLE COVER

  6. REMOVE HOOD LOCK ASSEMBLY

Engine Hood Courtesy Switch -- Removal



1. REMOVE COOL AIR INTAKE DUCT SEAL


    Lexus Is250, Is220D. Gse20 Ale20

  1. Using a clip remover, remove the 11 clips and cool air intake duct seal.



2. REMOVE FRONT BUMPER ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Theft Deterrent.Theft Deterrent System (W/ Intrusion Sensor).Engine Hood Courtesy Switch Removal

  1. Using a screwdriver, turn the pin 90 degrees and remove the 2 pin hold clips.

    HINT:
    1. Tape the screwdriver tip before use.
    2. Use the same procedures for the RH side and LH side.


    Lexus Is250, Is220D. Gse20 Ale20.Theft Deterrent.Theft Deterrent System (W/ Intrusion Sensor).Engine Hood Courtesy Switch Removal

  1. Put protective tape around the front bumper assembly.

  1. Using a clip remover, remove the 2 clips

  1. Remove the 2 radiator grille protectors.

  1. Remove the bolt and 10 screws.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Disengage the 5 claws and disconnect the front bumper assembly as shown in the illustration.

    HINT:
    Use the same procedures for the RH side and LH side.

  1. Disconnect the headlight washer hose. (w/ headlight cleaner system)

  1. Disconnect the connector and remove the front bumper assembly.



3. REMOVE MILLIMETER WAVE RADAR SENSOR ASSEMBLY (w/ Dynamic Radar Cruise Control System)

  1. Disconnect the connector.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 3 bolts and the millimeter wave radar sensor assembly.



4. REMOVE LOW PITCHED HORN ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Theft Deterrent.Theft Deterrent System (W/ Intrusion Sensor).Engine Hood Courtesy Switch Removal

  1. Disconnect the connector.

  1. Remove the bolt and the low pitched horn.



5. REMOVE HOOD LOCK CONTROL CABLE COVER


Lexus Is250, Is220D. Gse20 Ale20

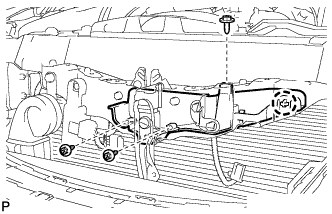

  1. Remove the 3 screws.

  1. Detach the claw and remove the hood lock control cable cover.



6. REMOVE HOOD LOCK ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

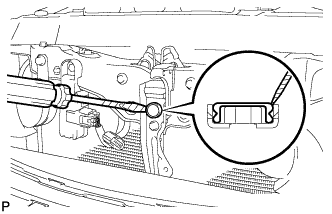

  1. Using a screwdriver, remove the hood lock nut cap as shown in the illustration.

    HINT:
    Tape the screwdriver tip before use.


    Lexus Is250, Is220D. Gse20 Ale20

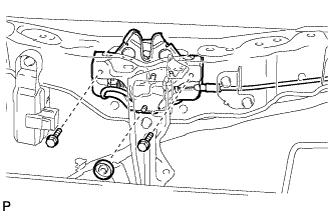

  1. Remove the 2 bolts and nut.



    Lexus Is250, Is220D. Gse20 Ale20

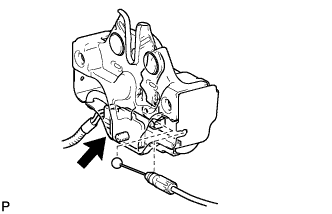

  1. Disconnect the hood lock control cable and connector.

  1. Remove the hood lock assembly.
