Wireless Door Lock Control System System Diagram

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Door Lock. Lexus Is250, Is220D. Gse20 Ale20

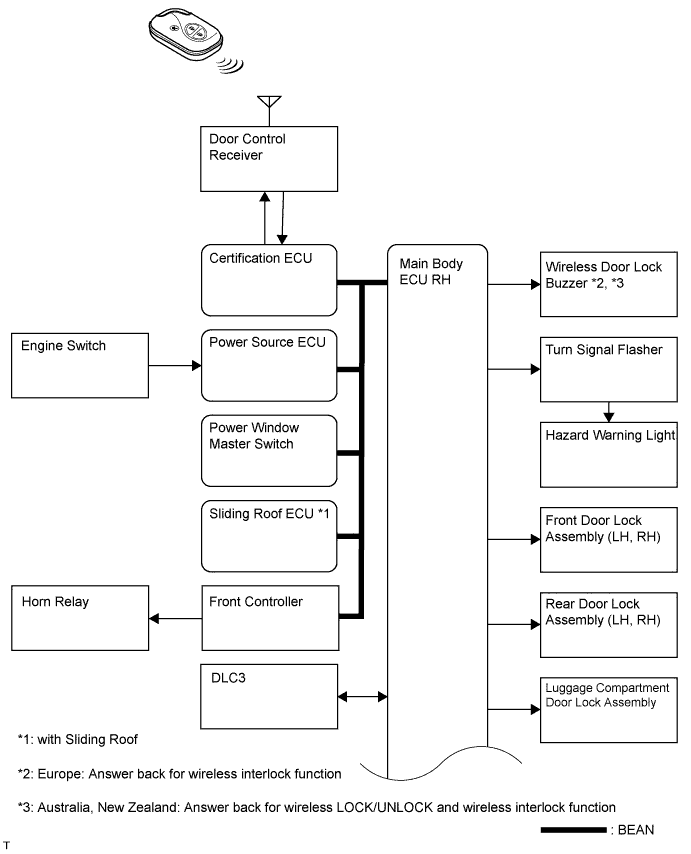

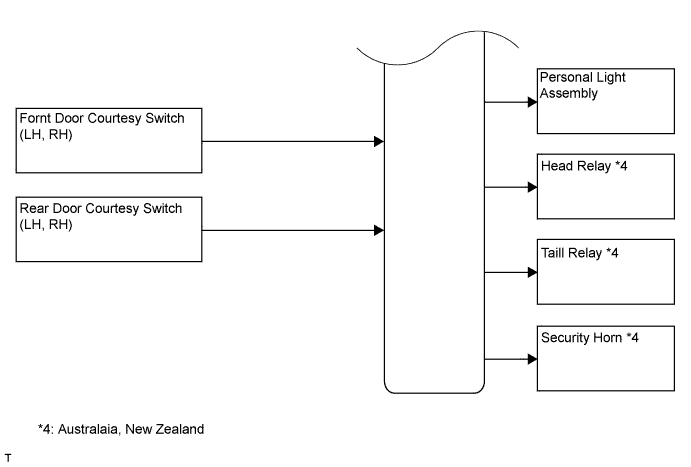

Wireless Door Lock Control System -- System Diagram



Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Wireless Door Lock Control System  System Diagram


Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Wireless Door Lock Control System  System Diagram


Transmitting ECU
(Transmitter)
Receiving ECU
(Receiver)
Signal
Line
Certification ECU
Main body ECU RH
IG relay operating states
BEAN
Power source ECU
Main body ECU RH
Engine switch signal
BEAN
Main body ECU RH
Power window master switch
Power window open signal
BEAN
Power window master switch
Sliding roof ECU
Sliding roof open signal
BEAN
Main body ECU RH
Front controller
Vehicle horn sound request
BEAN
