  1. INSTALL OUTPUT SHAFT FRONT BEARING

  2. INSTALL OUTPUT SHAFT CENTER BEARING

  3. INSTALL NO. 3 SYNCHRONIZER RING

Output Shaft -- Reassembly



1. INSTALL OUTPUT SHAFT FRONT BEARING


    Lexus Is250, Is220D. Gse20 Ale20.Ra62 Manual Transmission.Manual Transmission System.Output Shaft Reassembly

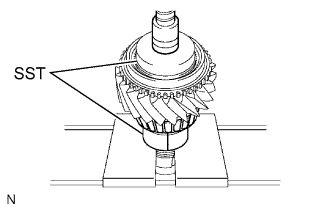

  1. Using SST and a press, install a new output shaft front bearing onto the output shaft.

    SST
    09710-20011(09710-06061)
    09950-60010(09951-00650)

  1. Apply a light coat of grease to the bearing.



2. INSTALL OUTPUT SHAFT CENTER BEARING

  1. Apply gear grease to the output shaft center bearing, and install it onto the output shaft.



3. INSTALL NO. 3 SYNCHRONIZER RING

  1. Apply gear oil to the No. 3 synchronizer ring, and install it onto the output shaft.
