  1. INSPECT STARTER CUT RELAY

Starter Cut Relay -- On-Vehicle Inspection



1. INSPECT STARTER CUT RELAY


    Lexus Is250, Is220D. Gse20 Ale20.2Ad-Fhv Starting.Starting System.Starter Cut Relay On-Vehicle Inspection

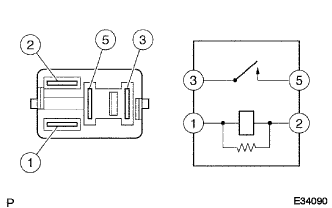

  1. Using an ohmmeter, measure the resistance between each terminal.

    Standard resistance:
    Tester Connection
    		Specified Condition
    3 - 5
    		10 kΩ or higher
    Below 1 Ω
    (Apply battery voltage between terminals 1 and 2)
    If the result is not as specified, replace the starter cut relay.
