Starter Cut Relay On-Vehicle Inspection

Engine. Lexus Is250, Is220D. Gse20 Ale20
4Gr-Fse Starting. Lexus Is250, Is220D. Gse20 Ale20

  1. INSPECT STARTER CUT RELAY

Starter Cut Relay -- On-Vehicle Inspection



1. INSPECT STARTER CUT RELAY


    Lexus Is250, Is220D. Gse20 Ale20

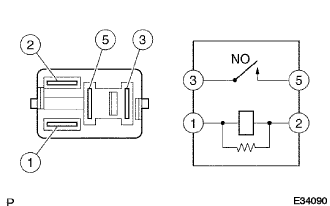

  1. Using an ohmmeter, measure the resistance between each terminal.

    Standard resistance:
    Tester Connection
    		Specified Condition
    3-5
    		10 MΩ or higher
    3-5
    		Below 1 Ω (when battery voltage is applied to terminals 1 and 2)
    If the result is not as specified, replace the relay.
