Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Lighting. Lexus Is250, Is220D. Gse20 Ale20
Rear Combination Light Assembly -- Installation |
| 1. INSTALL REAR LIGHT ASSEMBLY |
Install the rear light assembly with the 3 nuts.
 |

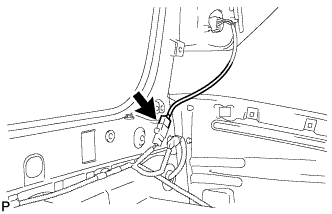

Connect the connector.
| 2. INSTALL LUGGAGE COMPARTMENT DOOR COVER |
| 3. INSTALL LUGGAGE COMPARTMENT DOOR ASSIST GRIP |
| 4. INSTALL REAR COMBINATION LIGHT ASSEMBLY |

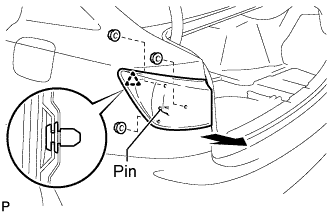

Install the rear combination light assembly with the clip and pin.
 |
Install the 3 nuts.
Connect the connector.
 |
| 5. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER |
| 6. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| 7. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER |
| 8. INSTALL ROPE HOOK |
| 9. INSTALL NO. 2 ROOM LIGHT ASSEMBLY |
| 10. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER |
| 11. INSTALL ROPE HOOK ASSEMBLY |
| 12. INSTALL DECK SIDE TRIM BOX RH |
| 13. INSTALL DECK SIDE TRIM BOX LH |
| 14. INSTALL SPARE WHEEL COVER |
| 15. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM COVER |
