Fog Light Assembly Removal

Using a clip remover, remove the 11 clips and cool air intake duct seal.

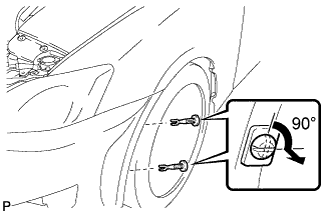

Using a screwdriver, turn the pin 90 degrees and remove the 2 pin hold clips.

HINT:

1. Tape the screwdriver tip before use.

2. Use the same procedures for the RH side and LH side.

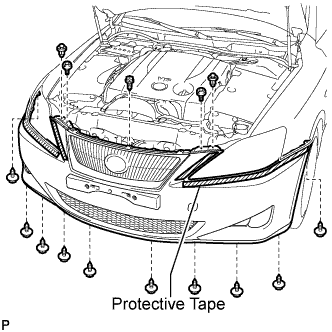

Put protective tape around the front bumper assembly.

Using a clip remover, remove the 2 clips

Remove the 2 radiator grille protectors.

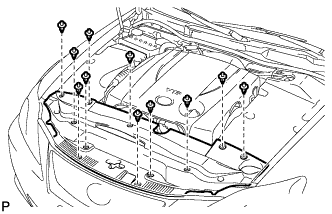

Remove the bolt and 10 screws.

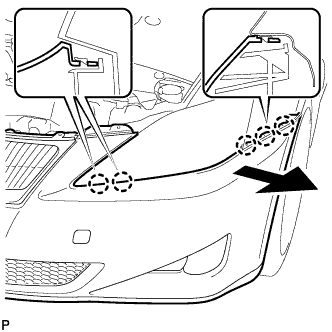

Disengage the 5 claws and disconnect the front bumper assembly as shown in the illustration.

HINT:

Use the same procedures for the RH side and LH side.

Disconnect the headlight washer hose. (w/ headlight cleaner system)

Disconnect the connector and remove the front bumper assembly.

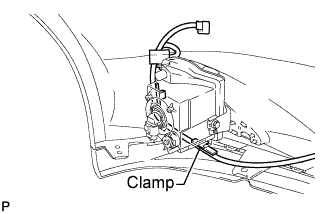

Disengage the clamp.

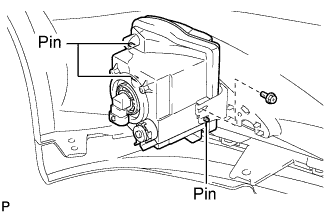

Disengage the 3 pins and remove the bolt and fog light assembly.
