High Intensity Discharge Headlight Bulb Removal

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Lighting. Lexus Is250, Is220D. Gse20 Ale20

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE COOL AIR INTAKE DUCT SEAL

  3. REMOVE ENGINE ROOM SIDE COVER (for 4GR-FSE)

  4. REMOVE ENGINE ROOM SIDE COVER (for 2AD-FHV)

  5. REMOVE WASHER HOSE

  6. REMOVE DISCHARGE HEADLIGHT BULB

High Intensity Discharge Headlight Bulb -- Removal



1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL


2. REMOVE COOL AIR INTAKE DUCT SEAL


    Lexus Is250, Is220D. Gse20 Ale20

  1. Using a clip remover, remove the 11 clips and cool air intake duct seal.



3. REMOVE ENGINE ROOM SIDE COVER (for 4GR-FSE)


    Lexus Is250, Is220D. Gse20 Ale20

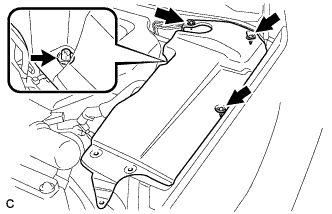

  1. Using a clip remover, remove the 4 clips.

  1. Disengage the nut and remove the engine room side cover.



4. REMOVE ENGINE ROOM SIDE COVER (for 2AD-FHV)


    Lexus Is250, Is220D. Gse20 Ale20

  1. Using a clip remover, remove the 3 clips.

  1. Disengage the nut and remove the engine room side cover.



5. REMOVE WASHER HOSE


    Lexus Is250, Is220D. Gse20 Ale20

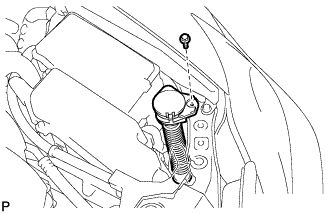

  1. Remove the bolt and washer hose.



6. REMOVE DISCHARGE HEADLIGHT BULB


    Lexus Is250, Is220D. Gse20 Ale20

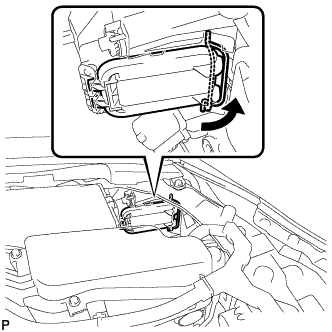

  1. Remove the headlight socket cover as shown in the illustration.

  1. Remove the headlight gasket.

    NOTICE:
    After the headlight gasket is removed, be sure to replace it with a new one. Failure to do this may cause water ingress.


    Lexus Is250, Is220D. Gse20 Ale20

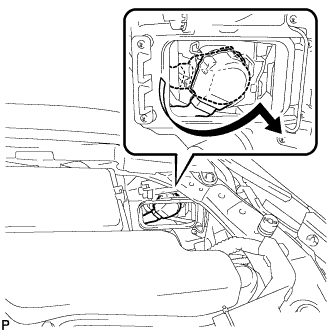

  1. Separate the light control ECU socket as shown in the illustration.



    Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.High Intensity Discharge Headlight Bulb Removal

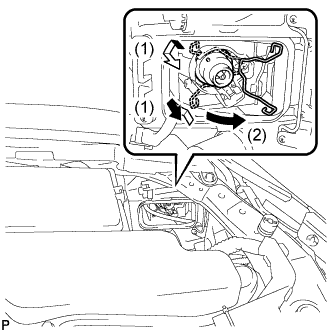

  1. Release the set spring and remove the discharge headlight bulb as shown in the illustration.

    NOTICE:
    After the discharge headlight bulb is replaced, make sure that it comes on. Then, reinstall all the parts that were removed to replace the bulb.
