Headlight Assembly Repair

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Lighting. Lexus Is250, Is220D. Gse20 Ale20

  1. INSTALL HEADLIGHT PROTECTOR RETAINER

Headlight Assembly -- Repair



1. INSTALL HEADLIGHT PROTECTOR RETAINER
HINT:
  1. If the installation area of the headlight assembly is damaged, use the supply retainer for low-cost repair.
  2. Ensure that the headlight assembly is not damaged.


    Lexus Is250, Is220D. Gse20 Ale20

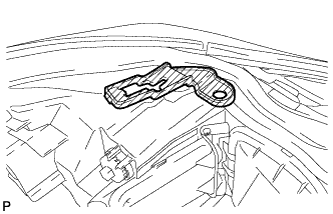

  1. Cut off the part shaded in the illustration and sand smooth with sandpaper.

    NOTICE:
    After cutting off the part, place the headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of the supply retainer.


    Lexus Is250, Is220D. Gse20 Ale20

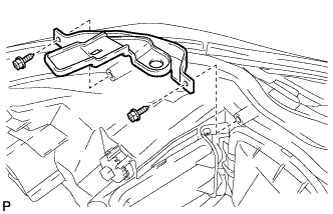

  1. Install the headlight protector retainer with the 2 screws.
