Headlight Assembly Disassembly

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Lighting. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE NO. 1 HEADLIGHT BULB (for Halogen Headlight)

  2. REMOVE DISCHARGE HEADLIGHT BULB (for Discharge Headlight)

  3. REMOVE NO. 2 HEADLIGHT BULB

  4. REMOVE PARKING LIGHT BULB

  5. REMOVE PARKING LIGHT SOCKET

  6. REMOVE FRONT TURN SIGNAL LIGHT BULB

  7. REMOVE HEADLIGHT WIRE HARNESS

  8. REMOVE FRONT BUMPER SIDE SUPPORT

  9. REMOVE HEADLIGHT LEVELING MOTOR (for Halogen Headlight)

  10. REMOVE HEADLIGHT LEVELING MOTOR (for Discharge Headlight)

  11. REMOVE HEADLIGHT LEVELING MOTOR BASE PACKING

  12. REMOVE HEADLIGHT SWIVEL MOTOR (for Discharge Headlight)

  13. REMOVE LIGHT CONTROL ECU SUB-ASSEMBLY (for Discharge Headlight)

  14. REMOVE HEADLIGHT GASKET

Headlight Assembly -- Disassembly



1. REMOVE NO. 1 HEADLIGHT BULB (for Halogen Headlight)


    Lexus Is250, Is220D. Gse20 Ale20

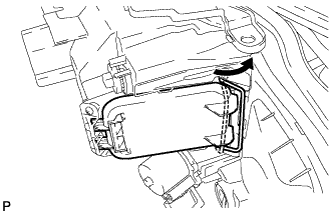

  1. Remove the headlight socket cover as shown in the illustration.

  1. Remove the headlight gasket.

    NOTICE:
    After the headlight gasket is removed, be sure to replace it with a new one. Failure to do this may cause water ingress.


    Lexus Is250, Is220D. Gse20 Ale20

  1. Disconnect the connector.

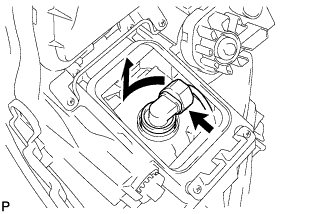

  1. Remove the No. 1 headlight bulb as shown in the illustration.



2. REMOVE DISCHARGE HEADLIGHT BULB (for Discharge Headlight)


    Lexus Is250, Is220D. Gse20 Ale20

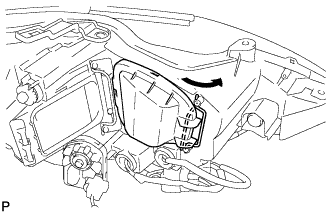

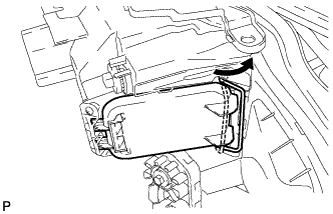

  1. Remove the headlight socket cover as shown in the illustration.

  1. Remove the headlight gasket.

    NOTICE:
    After the headlight gasket is removed, be sure to replace it with a new one. Failure to do this may cause water ingress.


    Lexus Is250, Is220D. Gse20 Ale20

  1. Separate the light control ECU socket as shown in the illustration.



    Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Headlight Assembly Disassembly

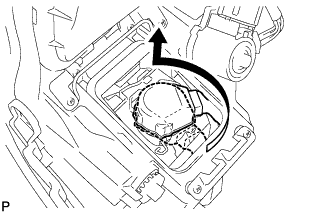

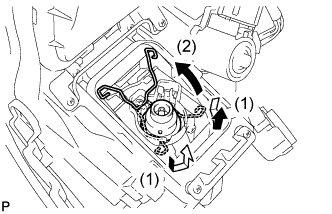

  1. Release the set spring and remove the discharge headlight bulb as shown in the illustration.



3. REMOVE NO. 2 HEADLIGHT BULB


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the headlight socket cover as shown in the illustration.

  1. Remove the headlight gasket.

    NOTICE:
    After the headlight gasket is removed, be sure to replace it with a new one. Failure to do this may cause water ingress.


    Lexus Is250, Is220D. Gse20 Ale20

  1. Disconnect the connector.

  1. Remove the No. 2 headlight bulb as shown in the illustration.



4. REMOVE PARKING LIGHT BULB


    Lexus Is250, Is220D. Gse20 Ale20

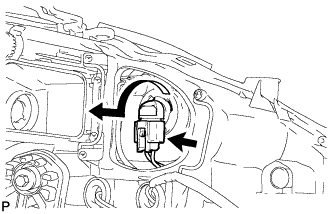

  1. Turn the parking light bulb and the parking light socket in the direction indicated by the arrow and remove them as a unit.

  1. Remove the parking light bulb from the parking light socket.



5. REMOVE PARKING LIGHT SOCKET

  1. Disconnect the connector and remove the parking light socket.



6. REMOVE FRONT TURN SIGNAL LIGHT BULB


    Lexus Is250, Is220D. Gse20 Ale20

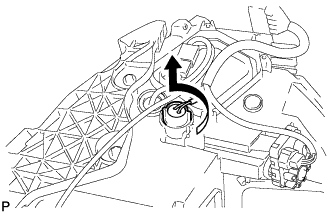

  1. Turn the front turn signal light bulb and the front turn signal light socket in the direction indicated by the arrow and remove them as a unit.

  1. Remove the front turn signal light bulb from the front turn signal light socket.



7. REMOVE HEADLIGHT WIRE HARNESS


    Lexus Is250, Is220D. Gse20 Ale20

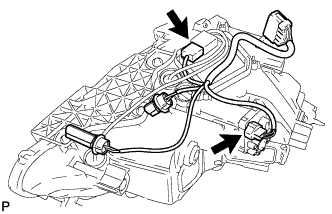

  1. Disconnect the connector and remove the headlight wire harness.



8. REMOVE FRONT BUMPER SIDE SUPPORT


    Lexus Is250, Is220D. Gse20 Ale20

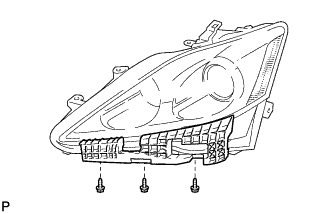

  1. Remove the 3 screws and front bumper side support.



9. REMOVE HEADLIGHT LEVELING MOTOR (for Halogen Headlight)


    Lexus Is250, Is220D. Gse20 Ale20

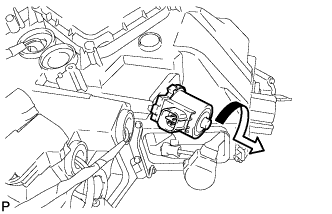

  1. Align the notches of the headlight leveling motor and the housing, and pull out the headlight leveling motor slightly.



    Lexus Is250, Is220D. Gse20 Ale20

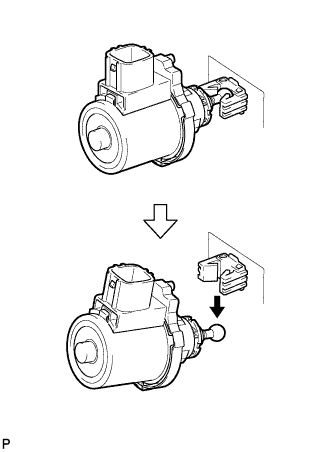

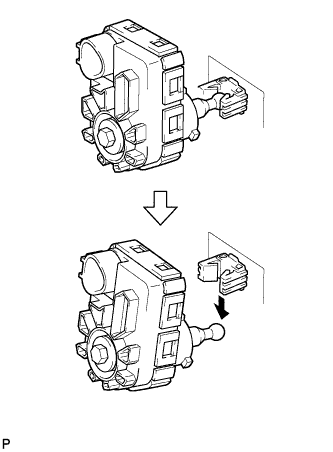

  1. Lower the tip of the headlight leveling motor to disengage it from the reflector and remove the headlight leveling motor.



10. REMOVE HEADLIGHT LEVELING MOTOR (for Discharge Headlight)


    Lexus Is250, Is220D. Gse20 Ale20

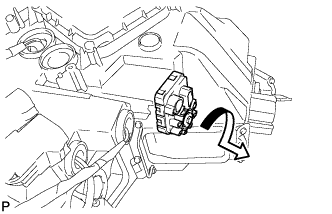

  1. Align the notches of the headlight leveling motor and the housing, and pull out the headlight leveling motor slightly.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Lower the tip of the headlight leveling motor to disengage it from the reflector and remove the headlight leveling motor.



11. REMOVE HEADLIGHT LEVELING MOTOR BASE PACKING

  1. Remove the headlight leveling motor base packing.

    NOTICE:
    After the headlight leveling motor base packing is removed, be sure to replace it with a new one. Failure to do this may cause water ingress.


12. REMOVE HEADLIGHT SWIVEL MOTOR (for Discharge Headlight)


    Lexus Is250, Is220D. Gse20 Ale20

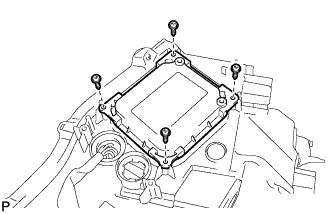

  1. Remove the 4 screws.



    Lexus Is250, Is220D. Gse20 Ale20.Lighting.Lighting System.Headlight Assembly Disassembly

  1. Install a drill bit into a drill.

  1. Wrap the drill bit of the drill with tape.

    HINT:
    Tape is used to prevent drilling too deeply into the headlight unit.

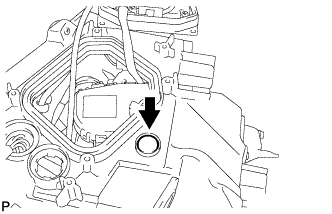

  1. Press the drill lightly against the point shown by the arrow and drill into the headlight unit.

  1. Using a file, enlarge the hole in the headlight using the groove as a guideline.



    Lexus Is250, Is220D. Gse20 Ale20

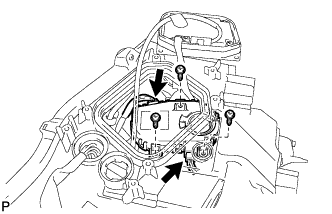

  1. Remove the 3 screws.

  1. Disconnect the connector and remove the washer and headlight swivel motor.



13. REMOVE LIGHT CONTROL ECU SUB-ASSEMBLY (for Discharge Headlight)


    Lexus Is250, Is220D. Gse20 Ale20

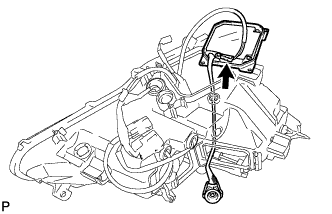

  1. Disconnect the connector and remove the light control ECU sub-assembly.

    NOTICE:
    The light control ECU sub-assembly cannot be removed unless the headlight swivel motor is removed.


14. REMOVE HEADLIGHT GASKET

  1. Remove the headlight gasket.

    NOTICE:
    After the headlight gasket is removed, be sure to replace it with a new one. Failure to do this may cause water ingress.
