Amplifier Antenna Installation

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Audio Visual. Lexus Is250, Is220D. Gse20 Ale20

  1. INSTALL AMPLIFIER ANTENNA ASSEMBLY

  2. INSTALL ROOF HEADLINING ASSEMBLY

  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

  4. PERFORM INITIALIZATION INITIALIZATION

  5. INSPECT SRS WARNING LIGHT

Amplifier Antenna -- Installation



1. INSTALL AMPLIFIER ANTENNA ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

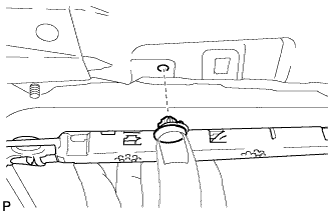

  1. Engage the clip as shown in the illustration to temporarily install the amplifier antenna assembly.

    NOTICE:
    1. Clean the antenna conductors on the rear window with white gasoline where the contact terminals will touch.
    2. When installing a new amplifier antenna assembly, do not remove the protective cover until immediately before installation.
    3. Do not touch the contact terminals.


    Lexus Is250, Is220D. Gse20 Ale20.Audio Visual.Audio And Visual System.Amplifier Antenna Installation

  1. Install the 2 nuts and amplifier antenna assembly.

    Torque:
    14 N*m{143 kgf*cm, 10 ft.*lbf}

  1. Connect the connector.

  1. Engage the clamp.



2. INSTALL ROOF HEADLINING ASSEMBLY
(Click here)
HINT:
Refer to the procedures from "INSTALL ROOF HEADLINING ASSEMBLY".


3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL


4. PERFORM INITIALIZATION INITIALIZATION
NOTICE:
Some systems need initialization when disconnecting the cable from the negative battery terminal (Click here).


5. INSPECT SRS WARNING LIGHT
(Click here)
