Rear Side Speaker Removal

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Audio Visual. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

  3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

  4. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP

  5. REMOVE REAR SPEAKER ASSEMBLY

  6. REMOVE REAR NO. 2 SPEAKER ASSEMBLY

  7. REMOVE REAR NO. 3 SPEAKER ASSEMBLY (w/o Front Center Speaker)

Rear Side Speaker -- Removal



1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG


    Lexus Is250, Is220D. Gse20 Ale20

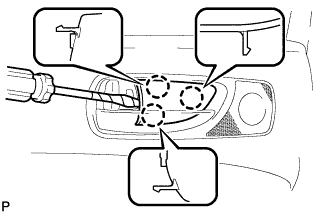

  1. Using a screwdriver wrapped with protective tape, disengage the 3 claws and remove the rear door inside handle bezel plug.



2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

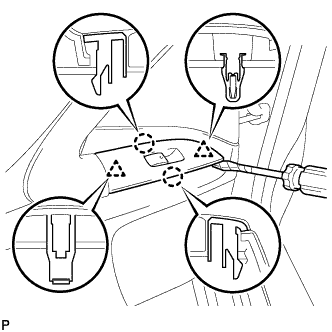

  1. Using a screwdriver wrapped with protective tape, disengage the 2 claws and 2 clips.

  1. Disconnect the connector and remove the rear power window regulator switch assembly.



3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 2 screws.

  1. Using the clip remover, disengage the 8 clips.



    Lexus Is250, Is220D. Gse20 Ale20.Audio Visual.Audio And Visual System.Rear Side Speaker Removal

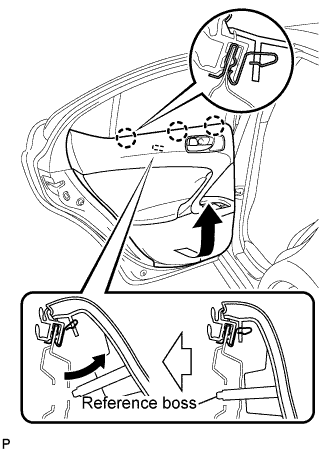

  1. Pull out the rear door trim board in the direction indicated by the arrow.

  1. Remove the reference bosses from the rear door panel.

  1. Raise the rear door trim board to disengage the 3 claws and remove the rear door trim board together with the rear door inner glass weatherstrip.



    Lexus Is250, Is220D. Gse20 Ale20

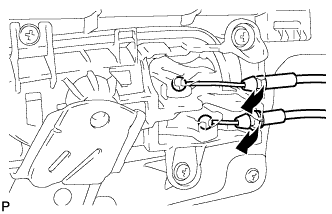

  1. Disconnect the cables and each connector from the back side of the inside handle and the rear door trim board sub-assembly, remove the rear door trim board sub-assembly.

  1. Remove the 2 rear door trim board retainers (green) from the rear door trim board.



4. REMOVE REAR DOOR INNER GLASS WEATHERSTRIP


    Lexus Is250, Is220D. Gse20 Ale20

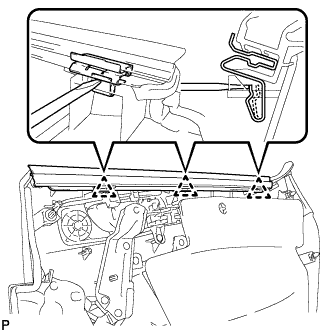

  1. Disengage the 3 clips as shown in the illustration and remove the rear door inner glass weatherstrip from the rear door trim board.



5. REMOVE REAR SPEAKER ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Disconnect the connector.

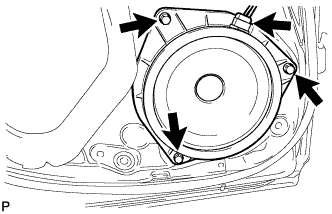

  1. Remove the 3 bolts and the rear speaker assembly.

    NOTICE:
    Do not touch the cone part of the speaker.


6. REMOVE REAR NO. 2 SPEAKER ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Audio Visual.Audio And Visual System.Rear Side Speaker Removal

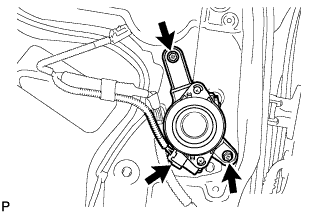

  1. Disengage the speaker connector clamp.

  1. Disengage the 3 claws and remove the rear No. 2 speaker assembly.

    NOTICE:
    Do not touch the cone part of the speaker.


7. REMOVE REAR NO. 3 SPEAKER ASSEMBLY (w/o Front Center Speaker)


    Lexus Is250, Is220D. Gse20 Ale20

  1. Disconnect the connector.

  1. Remove the 2 bolts and the rear No. 3 speaker assembly.

    NOTICE:
    Do not touch the cone part of the speaker.
