Front Center Speaker (W/ Front Center Speaker) Removal

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Audio Visual. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY

  2. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY

Front Center Speaker (W/ Front Center Speaker) -- Removal



1. REMOVE NO. 3 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Audio Visual.Audio And Visual System.Front Center Speaker (W/ Front Center Speaker) Removal

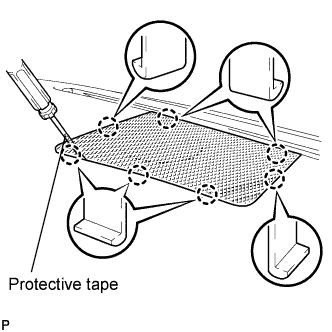

  1. Using a screwdriver, disengage the 7 claws and remove the No. 3 instrument panel speaker panel sub-assembly.

    HINT:
    Tape the screwdriver tip before use.


2. REMOVE FRONT STEREO COMPONENT SPEAKER ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

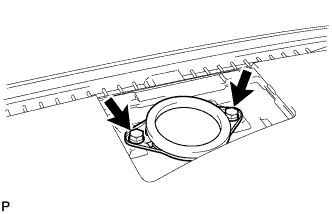

  1. Remove the 2 bolts.

  1. Lift the front stereo component speaker assembly and disconnect the connector to remove the speaker assembly.

    NOTICE:
    Do not touch the cone part of the speaker.
