Rear Center Speaker Removal

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Audio Visual. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE REAR SEAT CUSHION ASSEMBLY

  2. REMOVE REAR SEAT HEADREST ASSEMBLY

  3. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY

  4. REMOVE REAR SEATBACK ASSEMBLY

  5. REMOVE REAR DOOR SCUFF PLATE LH

  6. REMOVE REAR DOOR SCUFF PLATE RH

  7. REMOVE REAR SIDE SEAT GARNISH LH

  8. REMOVE REAR SIDE SEAT GARNISH RH

  9. REMOVE ROOF SIDE INNER GARNISH LH

  10. REMOVE ROOF SIDE INNER GARNISH RH

  11. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY

  12. REMOVE STEREO COMPONENT SPEAKER ASSEMBLY

  13. REMOVE NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Front Center Speaker)

  14. REMOVE REAR STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)

Rear Center Speaker -- Removal



1. REMOVE REAR SEAT CUSHION ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Audio Visual.Audio And Visual System.Rear Center Speaker Removal

  1. Detach the 2 front hooks of the seat cushion from the vehicle body.

    NOTICE:
    Follow the instructions below carefully as the cushion frame deforms easily.

    1. Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.

    2. Repeat for the other hook.

  1. Detach the 2 rear hooks of the seat cushion from the seatback.

  1. Remove the seat cushion.



2. REMOVE REAR SEAT HEADREST ASSEMBLY


3. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY


4. REMOVE REAR SEATBACK ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Audio Visual.Audio And Visual System.Rear Center Speaker Removal

  1. Using a screwdriver, detach the claws to open the cap of the 3 rear seat shoulder belt guides.



    Lexus Is250, Is220D. Gse20 Ale20.Audio Visual.Audio And Visual System.Rear Center Speaker Removal

  1. Using a screwdriver, detach the claw to open the cap of the 3 rear seat shoulder belt guides.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 4 bolts and rear seatback assembly.



5. REMOVE REAR DOOR SCUFF PLATE LH


    Lexus Is250, Is220D. Gse20 Ale20.Audio Visual.Audio And Visual System.Rear Center Speaker Removal

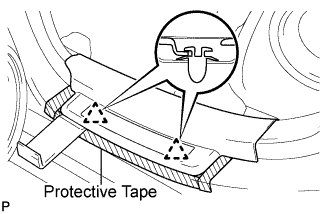

  1. Put protective tape around the rear door scuff plate.

  1. Using a moulding remover, disengage the 2 clips.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Disengage the 5 claws and remove the the rear door scuff plate LH.



6. REMOVE REAR DOOR SCUFF PLATE RH


7. REMOVE REAR SIDE SEAT GARNISH LH


    Lexus Is250, Is220D. Gse20 Ale20

  1. Disengage the 5 claws and remove the rear seat side garnish LH.



8. REMOVE REAR SIDE SEAT GARNISH RH


9. REMOVE ROOF SIDE INNER GARNISH LH


    Lexus Is250, Is220D. Gse20 Ale20

  1. Disengage the 4 clips and claw, and remove the roof side inner garnish LH.



10. REMOVE ROOF SIDE INNER GARNISH RH


11. REMOVE PACKAGE TRAY TRIM PANEL ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

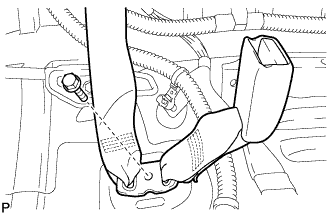

  1. Remove the bolt and separate the floor side of the rear seat 3 point type belt assembly LH.

    HINT:
    Use the same procedures for the RH side and the LH side.


    Lexus Is250, Is220D. Gse20 Ale20

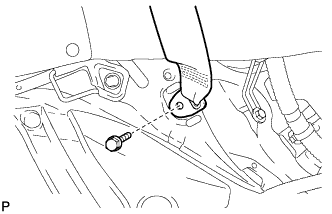

  1. Remove the bolt and separate the floor side of the rear seat inner with center belt assembly RH.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Disengage the 3 clips and raise the front portion of the package tray trim panel assembly.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Disengage the 2 claws and remove the rear seat shoulder belt covers.

    HINT:
    Use the same procedure for the other 2 rear seat shoulder belt covers.

  1. Pass the 3 rear seat belt floor anchors through the holes in the package tray trim panel assembly.

  1. Remove the package tray trim panel assembly.



12. REMOVE STEREO COMPONENT SPEAKER ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Audio Visual.Audio And Visual System.Rear Center Speaker Removal

  1. Disconnect the connector.

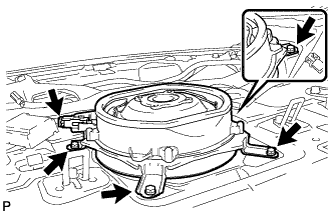

  1. Remove the 4 bolts and stereo component speaker assembly.

    NOTICE:
    Do not touch the cone part of the speaker.


13. REMOVE NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Front Center Speaker)


    Lexus Is250, Is220D. Gse20 Ale20

  1. Disengage the 3 clips and 5 claws, and remove the No. 2 package tray trim panel assembly.



14. REMOVE REAR STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)


    Lexus Is250, Is220D. Gse20 Ale20

  1. Disconnect the connector.

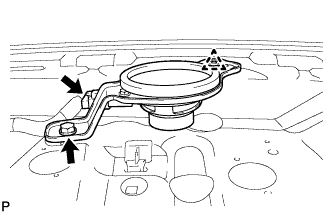

  1. Remove the bolt.

  1. Disengage the clip and remove the rear stereo component speaker assembly.

    NOTICE:
    Do not touch the cone part of the speaker.
