Front Side Speaker Installation

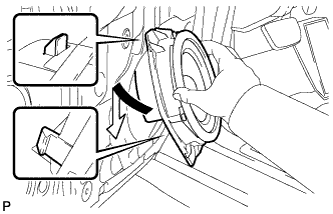

Engage the 2 claws as shown in the illustration to temporarily install the front No. 1 speaker assembly.

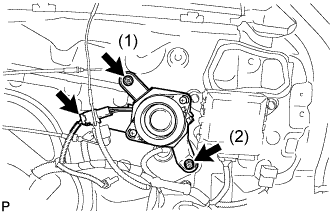

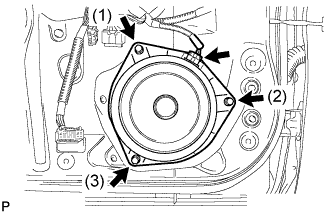

Install the front No. 1 speaker assembly with the 3 bolts.

HINT:

Install the bolts in the order shown in the illustration.

Connect the connector.

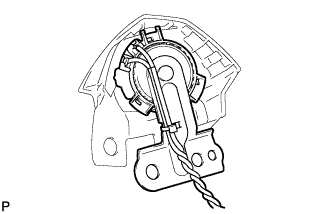

Install the front No. 2 speaker assembly to the cover.

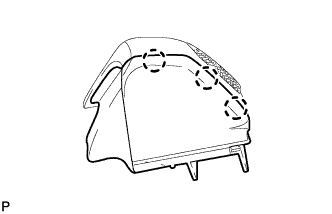

Engage the 3 claws and install the cover.

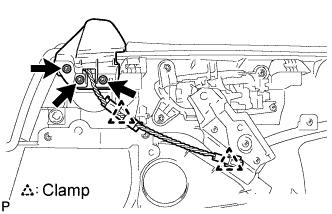

Install the front No. 2 speaker assembly w/ cover with the 3 screws.

Engage the 2 clamps.

Install the front No. 3 speaker assembly with the 2 bolts.

HINT:

Install the bolts in the order shown in the illustration.

Connect the connector.

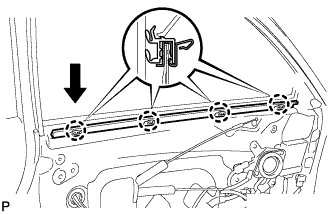

Engage the 4 claws and install the front door inner glass weatherstrip.

Connect the rear door lock remote control cable and rear door inside locking cable to the front inside handle.

Connect each connector.

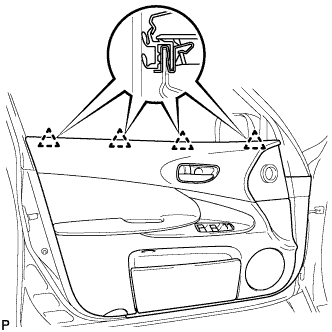

Engage the front door trim board with the 4 clips of the front door inner glass weatherstrip.

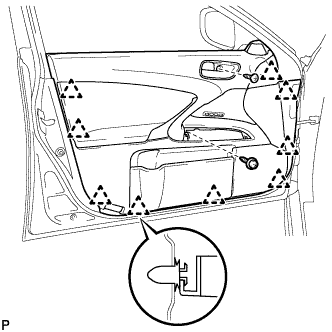

Engage the 9 clips and install the front door trim board to the front door panel.

Install the 2 screws.

Connect each connector.

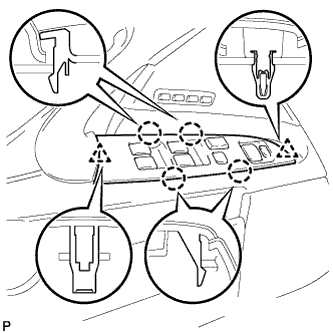

Engage the 4 claws and 2 clips, and install the power window regulator master switch assembly.

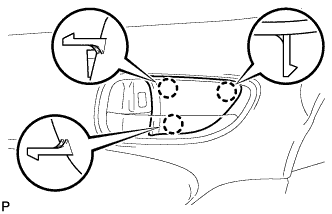

Engage the 3 claws and install the front door inside handle bezel plug.
