Navigation Ecu -- Installation |
| 1. INSTALL NAVIGATION ECU |
Install the navigation ECU with the 4 bolts.
 |
Connect the connectors.
 |
| 2. INSTALL MULTI-DISPLAY ASSEMBLY |
| 3. INSTALL NO. 2 RADIO BRACKET |
Install the radio No. 2 bracket with the 7 bolts.
 |
| 4. INSTALL NO. 1 RADIO BRACKET |
Install the radio No. 1 bracket with the 7 bolts.
 |
Engage the connector clamp.
 |
| 5. INSTALL MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY |
Connect each connector.
Install the the multi-display w/ radio receiver assembly with the 4 bolts.
 |
| 6. INSTALL CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL |
Engage the 4 claws and install the center lower instrument cluster finish panel.
 |
| 7. INSTALL NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY |
Connect the connectors.
 |
Engage the 11 claws and install the No. 3 instrument panel register assembly.
| 8. INSTALL CONSOLE BOX |
Engage the 2 claws and 2 clips.
 |
Install the 2 bolts <C>.
 |
Install the 2 bolts <C>.
 |
Connect the connector.
Connect the connectors.
 |
Engage the 2 clamps.
Install the 2 bolts <C>.
| 9. INSTALL CONSOLE BOX REGISTER ASSEMBLY |
Engage the 2 claws and 4 clips, and then install the console box register assembly.
 |
Install the rear ash receptacle assembly.
| 10. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY |
Connect the connectors.
 |
Insert the protruding parts of the front ash receptacle sub-assembly into the 2 guide holes as shown in the illustration.
Install the front ash receptacle sub-assembly with the 2 screws <F>.
 |
| 11. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) |
Engage the 6 clips.
 |
Close the snap.
 |
| 12. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) |
Engage the 7 claws and 2 clips.
 |
Close the snap.
 |
| 13. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) |
Connect the connectors.
 |
Engage the 8 clips and install the console panel sub-assembly.
| 14. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) |
Engage the claw and 2 clips, and then install the upper No. 2 console panel garnish.
 |
| 15. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) |
Engage the claw and 2 clips, and then install the upper No. 1 console panel garnish.
 |
| 16. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) |
| 17. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) |
| 18. INSERT MAP DISC |

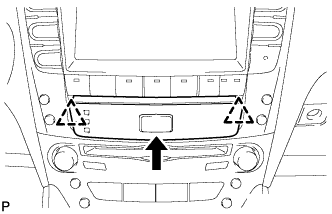

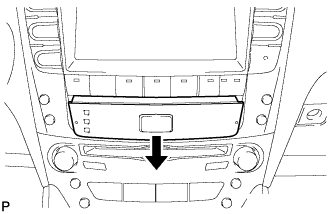

Remove the clock assembly
 |
Turn the engine switch on (ACC).
Insert the map disc.

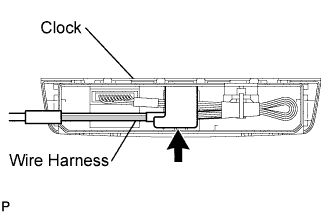

Check that the wire harness is in the position shown in the illustration.
 |
Install the clock assembly.
 |
| 19. ADJUST CLOCK |
