  1. INSPECT STOP LIGHT SWITCH ASSEMBLY

Stop Light Switch -- Inspection



1. INSPECT STOP LIGHT SWITCH ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Brake.Brake System.Stop Light Switch Inspection

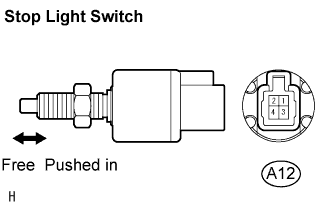

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    A12-1 - A12-2
    		Switch pin free
    		Below 1 Ω
    A12-1 - A12-2
    		Switch pin pushed in
    		10 kΩ or higher
    HINT:
    If the measurement result is not normal, replace the stop light switch assembly.
