  1. INSPECT ENTRY LOCK AND UNLOCK SWITCH

Entry Lock And Unlock Switch -- Inspection



1. INSPECT ENTRY LOCK AND UNLOCK SWITCH


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Entry Lock And Unlock Switch Inspection

  1. Remove the outside handle.

  1. Disconnect the connectors.

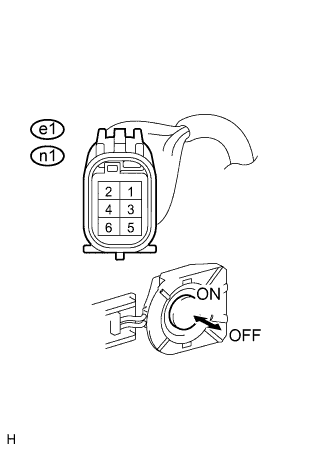

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection (Symbols)
    		Condition
    		Specified Condition
    e1-1 (TRG-) - e1-3 (TRG+)
    		Lock switch not pushed
    		10 kΩ or higher
    Lock switch pushed
    		Below 1 Ω
    n1-1 (TRG-) - n1-3 (TRG+)
    		Lock switch not pushed
    		10 kΩ or higher
    Lock switch pushed
    		Below 1 Ω
