Entry Lock And Unlock Switch Installation

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Door Lock. Lexus Is250, Is220D. Gse20 Ale20

  1. INSTALL FRONT DOOR OUTSIDE HANDLE SUB-ASSEMBLY

  2. INSTALL FRONT DOOR OUTSIDE HANDLE COVER

  3. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY

  4. INSTALL FRONT DOOR SERVICE HOLE COVER

  5. INSTALL FRONT DOOR TRIM COVER

  6. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

  7. INSTALL COURTESY LIGHT ASSEMBLY

  8. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

  9. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG

Entry Lock And Unlock Switch -- Installation



1. INSTALL FRONT DOOR OUTSIDE HANDLE SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20
  1. Insert the front end of the front door outside handle sub-assembly in to the front door out side handle frame.

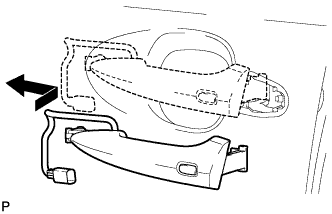

  1. Insert the rear end of the front door outside handle assembly into the front door outside handle frame. Next slide the front door outside handle assembly to the front of the vehicle to install it.



    Lexus Is250, Is220D. Gse20 Ale20

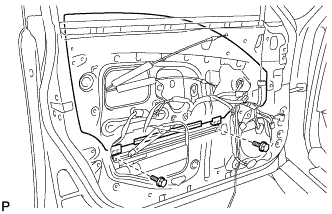

  1. Using a "torx" socket wrench (T30), install the front door outside handle sub-assembly with the screw.

  1. Connect the connector.



2. INSTALL FRONT DOOR OUTSIDE HANDLE COVER


    Lexus Is250, Is220D. Gse20 Ale20

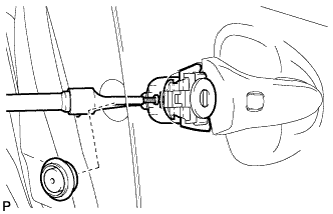

  1. Install the front door lock cylinder.

    HINT:
    Make sure that the front door lock cylinder rod is inserted into the front door lock assembly.


    Lexus Is250, Is220D. Gse20 Ale20

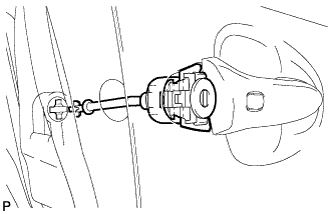

  1. Using a "torx" socket wrench (T30), install the front door lock cylinder with the screw.

  1. Install the hole plug.



    Lexus Is250, Is220D. Gse20 Ale20

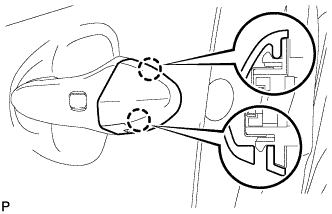

  1. Engage the 2 claws of the front door outside handle cover to the front door lock cylinder to install the cover.



3. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Entry Lock And Unlock Switch  Installation

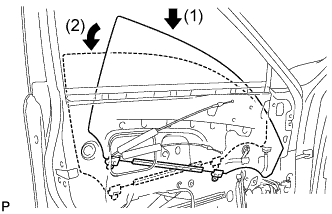

  1. Insert the front door glass sub-assembly into the front door panel along the front door glass run as indicated by the arrows in the illustration.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Install the front door glass sub-assembly with the 2 bolts.

    Torque:
    5.5 N*m{56 kgf*cm, 49 in.*lbf}


    Lexus Is250, Is220D. Gse20 Ale20
  1. Install the hole plug.



4. INSTALL FRONT DOOR SERVICE HOLE COVER

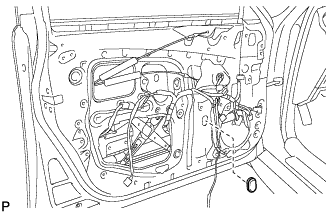

  1. Apply butyl tape to the front door panel.

  1. Pass the front door lock remote control cable and rear door inside locking cable through a new front door service hole cover.



    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Entry Lock And Unlock Switch  Installation

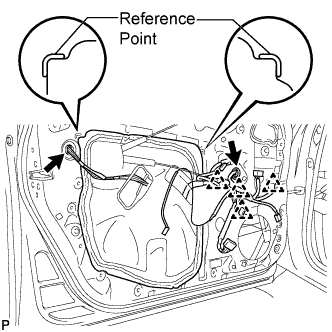

  1. Install the service hole cover.

    NOTICE:
    Securely install the front door service hole cover avoiding wrinkles and air bubbles.
  1. Connect each connector and each clamp.



5. INSTALL FRONT DOOR TRIM COVER


    Lexus Is250, Is220D. Gse20 Ale20
  1. Engage the 6 clips to install the front door trim cover.

  1. Install the screw.



6. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

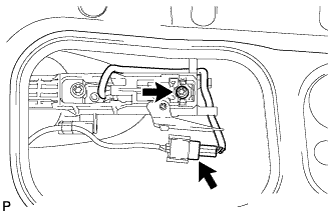

  1. Connect the rear door lock remote control cable and rear door inside locking cable to the front inside handle.

  1. Connect each connector.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Engage the front door trim board with the 4 clips of the front door inner glass weatherstrip.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Engage the 9 clips and install the front door trim board to the front door panel.

  1. Install the 2 screws.



7. INSTALL COURTESY LIGHT ASSEMBLY
  1. Connect the connector.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Engage the claw and install the courtesy light assembly.



8. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
  1. Connect each connector.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Engage the 4 claws and 2 clips, and install the power window regulator master switch assembly.



9. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG


    Lexus Is250, Is220D. Gse20 Ale20
  1. Engage the 3 claws and install the front door inside handle bezel plug.
