Rear Door Lock Removal

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Door Lock. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG

  2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

  3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY

  4. REMOVE REAR DOOR TRIM COVER

  5. REMOVE REAR DOOR SERVICE HOLE COVER

  6. REMOVE REAR DOOR GLASS RUN

  7. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

  8. REMOVE REAR DOOR GLASS SUB-ASSEMBLY

  9. REMOVE REAR DOOR LOCK ASSEMBLY

Rear Door Lock -- Removal



1. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG


    Lexus Is250, Is220D. Gse20 Ale20
  1. Using a screwdriver wrapped with protective tape, disengage the 3 claws and remove the rear door inside handle bezel plug.



2. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20
  1. Using a screwdriver wrapped with protective tape, disengage the 2 claws and 2 clips.

  1. Disconnect the connector and remove the rear power window regulator switch assembly.



3. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20
  1. Remove the 2 screws.

  1. Using the clip remover, disengage the 8 clips.



    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Rear Door Lock  Removal
  1. Pull out the rear door trim board in the direction indicated by the arrow.

  1. Remove the reference bosses from the rear door panel.

  1. Raise the rear door trim board to disengage the 3 claws and remove the rear door trim board together with the rear door inner glass weatherstrip.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Disconnect the cables and each connector from the back side of the inside handle and the rear door trim board sub-assembly, remove the rear door trim board sub-assembly.

  1. Remove the 2 rear door trim board retainers (green) from the rear door trim board.



4. REMOVE REAR DOOR TRIM COVER


    Lexus Is250, Is220D. Gse20 Ale20
  1. Remove the screw.

  1. Using a clip remover, detach the 5 clips and remove the rear door trim cover.



5. REMOVE REAR DOOR SERVICE HOLE COVER


    Lexus Is250, Is220D. Gse20 Ale20

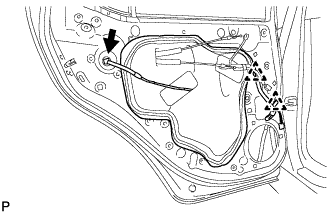

  1. Disconnect the connector and 2 clamps.

  1. Remove the rear door service hole cover.

    HINT:
    Remove the remaining tape on the door side.


6. REMOVE REAR DOOR GLASS RUN


    Lexus Is250, Is220D. Gse20 Ale20
  1. Remove the rear door glass run.



7. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20
  1. Remove the 2 bolts, the screw, and the rear door window division bar sub-assembly.



8. REMOVE REAR DOOR GLASS SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

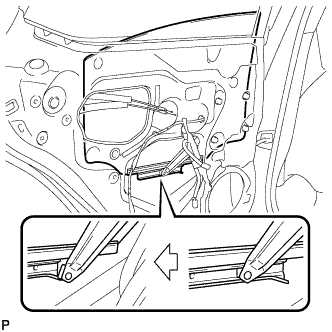

  1. Remove the rear door glass sub-assembly from the rear door window regulator sub-assembly as shown in the illustration.

    NOTICE:
    Do not damage the door glass.


9. REMOVE REAR DOOR LOCK ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

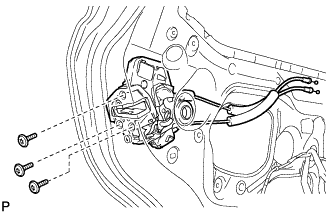

  1. Using a "torx" socket wrench (T30), remove the 3 screws and the rear door lock assembly.

  1. Move the rear door lock assembly downward and pull the release plate out of the rear door outside handle frame.

  1. Remove the door lock wiring harness seal from the rear door lock assembly.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Using a screwdriver, disengage the claw.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Remove the rear door lock remote control cable assembly.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Using a screwdriver, disengage the 3 claws.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Remove the rear door inside locking cable assembly.
