Rear Door Lock Installation

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Door Lock. Lexus Is250, Is220D. Gse20 Ale20

  1. INSTALL REAR DOOR LOCK ASSEMBLY

  2. INSTALL REAR DOOR GLASS SUB-ASSEMBLY

  3. INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY

  4. INSTALL REAR DOOR GLASS RUN

  5. INSTALL REAR DOOR SERVICE HOLE COVER

  6. INSTALL REAR DOOR TRIM COVER

  7. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY

  8. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

  9. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG

Rear Door Lock -- Installation



1. INSTALL REAR DOOR LOCK ASSEMBLY
NOTICE:
  1. When reusing the removed rear door lock assembly, replace the door lock wire harness seal on the connector with a new one.
  2. Do not allow grease or dust to adhere on the door lock wiring harness seal surface of the connector.
  3. Reusing the door lock wiring harness sealing and/ or using damaged door lock wiring harness seal may cause water intrusion to the connection, and result in a malfunction in the rear door lock assembly.


    Lexus Is250, Is220D. Gse20 Ale20

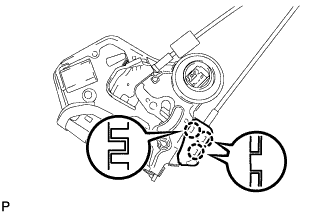

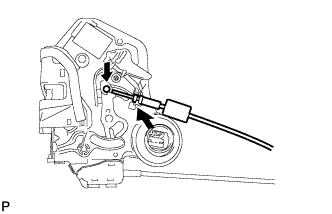

  1. Install the rear door inside locking cable assembly.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 3 claws.



    Lexus Is250, Is220D. Gse20 Ale20

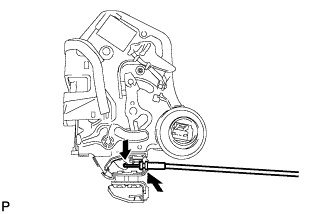

  1. Install the rear door lock remote control cable assembly.



    Lexus Is250, Is220D. Gse20 Ale20

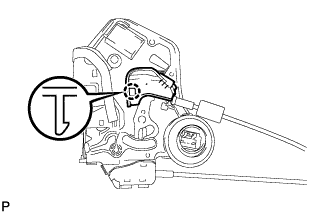

  1. Engage the claw.

  1. Apply MP grease to the sliding parts on the rear door lock assembly.

  1. Install a new door lock wiring harness seal to the rear door lock assembly.



    Lexus Is250, Is220D. Gse20 Ale20

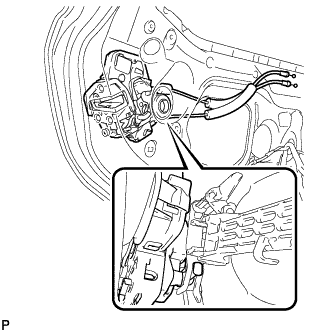

  1. Insert the rear door lock assembly to the rear door outside handle release plate, and set it to the rear door panel.

  1. Make sure that the rear door outside handle frame release plate is securely connected to the rear door lock assembly.

  1. Using a "torx" socket wrench (T30), install the rear door lock assembly with the 3 screws.

    Torque:
    5.5 N*m{56 kgf*cm, 49 in.*lbf}

  1. Connect the connector.



2. INSTALL REAR DOOR GLASS SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Slide the rear door glass sub-assembly to install it as shown in the illustration.



3. INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

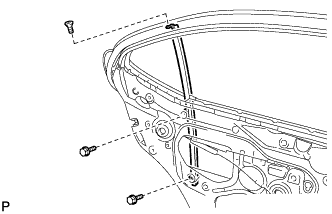

  1. Insert the rear door window division bar from up above and install it with the 2 bolts and screw.



4. INSTALL REAR DOOR GLASS RUN


    Lexus Is250, Is220D. Gse20 Ale20

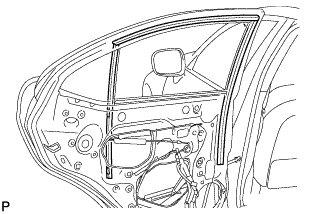

  1. Install the rear door glass run.



5. INSTALL REAR DOOR SERVICE HOLE COVER

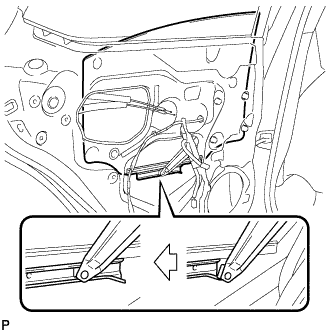

  1. Apply butyl tape to the rear door panel.

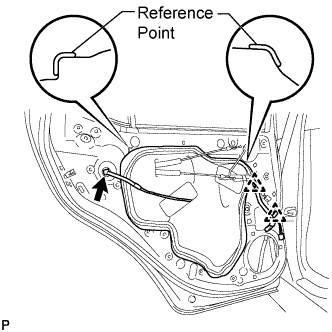

  1. Pass the rear door lock remote control cable, rear door inside locking cable and each connector through a new rear door service hole cover.



    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Rear Door Lock Installation

  1. Install the rear door service hole cover.

    NOTICE:
    Securely install the rear door service hole cover avoiding wrinkles and air bubbles.

  1. Connect the connector and clamp.



6. INSTALL REAR DOOR TRIM COVER


    Lexus Is250, Is220D. Gse20 Ale20

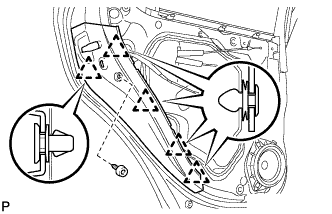

  1. Engage the 5 clips to install the rear door trim cover.

  1. Install the screw.



7. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Connect the rear door lock remote control cable and rear door inside locking cable to the rear inside handle.

  1. Connect each connector.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the rear door trim board with the 3 clips of the rear door inner glass weatherstrip.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 8 clips to install the rear door trim board to the rear door panel.

  1. Install the 2 screws.



8. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY

  1. Connect the connector.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 2 claws and 2 clips, and install the rear power window regulator switch assembly.



9. INSTALL REAR DOOR INSIDE HANDLE BEZEL PLUG


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 3 claws to install the rear door inside handle bezel plug.
