Front Door Lock Installation

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Door Lock. Lexus Is250, Is220D. Gse20 Ale20

  1. INSTALL FRONT DOOR LOCK ASSEMBLY

  2. INSTALL FRONT NO. 1 DOOR STIFFENER CUSHION

  3. INSTALL FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY

  4. INSTALL FRONT DOOR OUTSIDE HANDLE COVER

  5. INSTALL FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY

  6. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY

  7. INSTALL FRONT DOOR SERVICE HOLE COVER

  8. INSTALL FRONT DOOR TRIM COVER

  9. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY

  10. INSTALL COURTESY LIGHT ASSEMBLY

  11. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

  12. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG

Front Door Lock -- Installation



1. INSTALL FRONT DOOR LOCK ASSEMBLY
NOTICE:
  1. When reusing the removed front door lock assembly, replace the door lock wire harness seal on the connector with a new one.
  2. Do not allow grease or dust to adhere on the door lock wiring harness seal surface of the connector.
  3. Reusing the door lock wiring harness sealing and/ or using damaged door lock wiring harness seal may cause water intrusion to the connection, and result in a malfunction in the front door lock assembly.


    Lexus Is250, Is220D. Gse20 Ale20

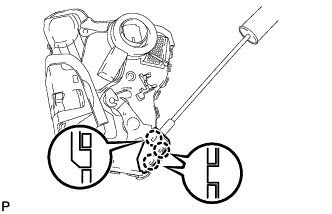

  1. Install the front door inside locking cable assembly.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Engage the 3 claws.



    Lexus Is250, Is220D. Gse20 Ale20

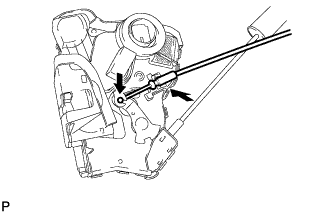

  1. Install the front door lock remote control cable assembly.

  1. Apply MP grease to the sliding parts on the front door lock assembly.

  1. Install a new door lock wiring harness seal to front door lock assembly.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Insert the front door lock open rod to the front door lock assembly, and set it to the front door outside handle frame.

  1. Make sure that the front door outside handle link is securely connected to the front door lock assembly.

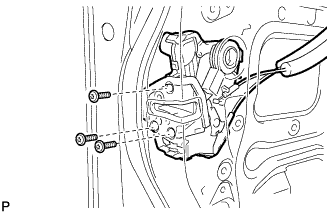

  1. Using a "torx" socket wrench (T30), install the front door lock assembly with the 3 screws.

    Torque:
    5.5 N*m{56 kgf*cm, 49 in.*lbf}
  1. Connect the connector.



2. INSTALL FRONT NO. 1 DOOR STIFFENER CUSHION


    Lexus Is250, Is220D. Gse20 Ale20

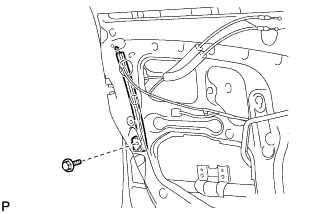

  1. Install a new front No. 1 door stiffener cushion with the 2 bolts and double-sided tape.



3. INSTALL FRONT DOOR WINDOW REGULATOR SUB-ASSEMBLY
  1. Apply MP grease to the sliding parts on the front door window regulator sub-assembly.



    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Front Door Lock  Installation
  1. Install the temporary bolt to the front door window regulator sub-assembly.

  1. Temporarily install the window regulator.

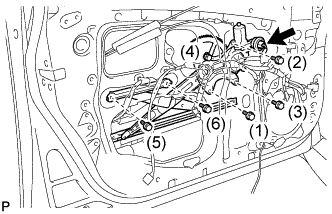

  1. Tighten the 6 bolts in the order shown in the illustration to install the front window regulator.

    Torque:
    11 N*m{112 kgf*cm, 8.1 ft.*lbf}
  1. Connect the connector.



4. INSTALL FRONT DOOR OUTSIDE HANDLE COVER


    Lexus Is250, Is220D. Gse20 Ale20
  1. Install the front door lock cylinder.

    HINT:
    Make sure that the front door lock cylinder rod is inserted into the front door lock assembly.


    Lexus Is250, Is220D. Gse20 Ale20
  1. Using a "torx" socket wrench (T30), install the front door lock cylinder with the screw.

  1. Install the hole plug.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Engage the 2 claws of the front door outside handle cover to the front door lock cylinder to install the cover.



5. INSTALL FRONT DOOR REAR LOWER FRAME SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20
  1. Install the front door rear lower frame sub-assembly with the bolt.



6. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Front Door Lock  Installation
  1. Insert the front door glass sub-assembly into the front door panel along the front door glass run as indicated by the arrows in the illustration.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Install the front door glass sub-assembly with the 2 bolts.

    Torque:
    5.5 N*m{56 kgf*cm, 49 in.*lbf}


    Lexus Is250, Is220D. Gse20 Ale20
  1. Install the hole plug.



7. INSTALL FRONT DOOR SERVICE HOLE COVER
  1. Apply butyl tape to the front door panel.

  1. Pass the front door lock remote control cable and rear door inside locking cable through a new front door service hole cover.



    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Front Door Lock  Installation
  1. Install the service hole cover.

    NOTICE:
    Securely install the front door service hole cover avoiding wrinkles and air bubbles.
  1. Connect each connector and each clamp.



8. INSTALL FRONT DOOR TRIM COVER


    Lexus Is250, Is220D. Gse20 Ale20
  1. Engage the 6 clips to install the front door trim cover.

  1. Install the screw.



9. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

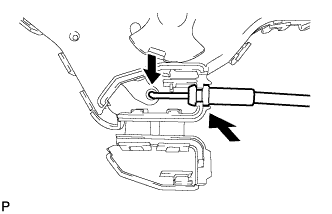

  1. Connect the rear door lock remote control cable and rear door inside locking cable to the front inside handle.

  1. Connect each connector.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Engage the front door trim board with the 4 clips of the front door inner glass weatherstrip.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Engage the 9 clips and install the front door trim board to the front door panel.

  1. Install the 2 screws.



10. INSTALL COURTESY LIGHT ASSEMBLY
  1. Connect the connector.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Engage the claw and install the courtesy light assembly.



11. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY
  1. Connect each connector.



    Lexus Is250, Is220D. Gse20 Ale20
  1. Engage the 4 claws and 2 clips, and install the power window regulator master switch assembly.



12. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG


    Lexus Is250, Is220D. Gse20 Ale20
  1. Engage the 3 claws and install the front door inside handle bezel plug.
