Door Control Switch Inspection

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Door Lock. Lexus Is250, Is220D. Gse20 Ale20

  1. INSPECT DOOR CONTROL SWITCH

Door Control Switch -- Inspection



1. INSPECT DOOR CONTROL SWITCH


    Lexus Is250, Is220D. Gse20 Ale20.Door Lock.Power Door Lock Control System.Door Control Switch Inspection

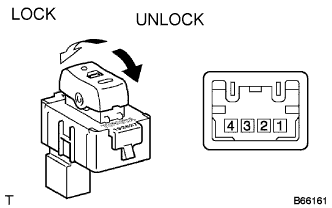

  1. Remove the door control switch assembly.

  1. Measure the resistance according to the value(s) in the table below.

    Standard resistance:
    Tester Connection
    		Condition
    		Specified Condition
    2 - 3
    		Lock
    		Below 1 Ω
    2 - 3
    1 - 2
    		OFF (Free)
    		10 kΩ or higher
    1 - 2
    		Unlock
    		Below 1 Ω
