Door Control Transmitter Installation

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Door Lock. Lexus Is250, Is220D. Gse20 Ale20

  1. INSTALL TRANSMITTER BATTERY

Door Control Transmitter -- Installation



1. INSTALL TRANSMITTER BATTERY


    Lexus Is250, Is220D. Gse20 Ale20

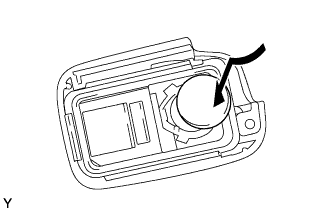

  1. Install a new battery in the slot at an angle with the positive side facing up.

  1. Press down on the battery to set it in place.

    NOTICE:
    1. Be sure that the positive side and the negative side of the transmitter battery are matched correctly.
    2. Be careful not to bend the transmitter battery electrode while installing the battery.
    3. Keep the interior of the transmitter case free of dust, water and oil.


    Lexus Is250, Is220D. Gse20 Ale20

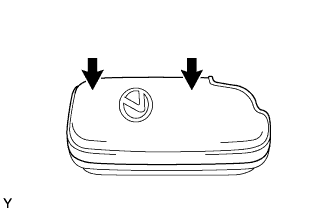

  1. Install the cover by pressing down on it as shown in the illustration.



    Lexus Is250, Is220D. Gse20 Ale20

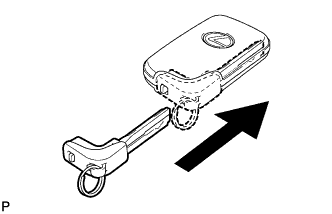

  1. Install the mechanical key.

    HINT:
    After the installation, press one of the transmitter's switches and check that the LED illuminates.
