Front Washer Motor Installation

Install the headlight cleaner motor and pump assembly.

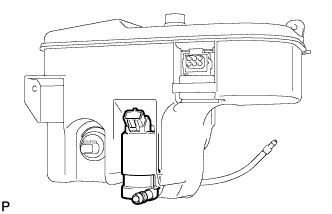

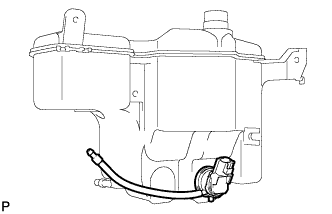

Install the windshield washer motor and pump assembly.

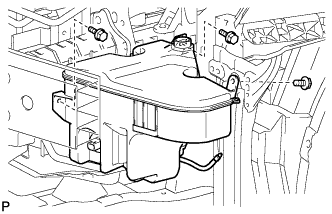

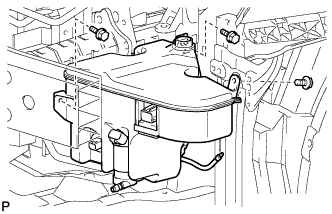

Install the windshield washer jar and pump assembly with the 3 bolts.

Torque:

5.5 N*m{56 kgf*cm, 49 in.*lbf}

Install the upper part of the windshield washer jar and pump assembly to the windshield washer jar and pump assembly.

Install the bolt.

Torque:

5.5 N*m{56 kgf*cm, 49 in.*lbf}

Connect the 2 connectors.

Install the windshield washer jar and pump assembly with the 3 bolts.

Torque:

5.5 N*m{56 kgf*cm, 49 in.*lbf}

Install the upper part of the windshield washer jar and pump assembly to the windshield washer jar and pump assembly.

Install the bolt.

Torque:

5.5 N*m{56 kgf*cm, 49 in.*lbf}

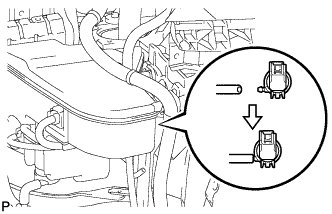

Connect the headlight cleaner hose to the windshield washer jar and pump assembly.

Connect the 4 connectors.

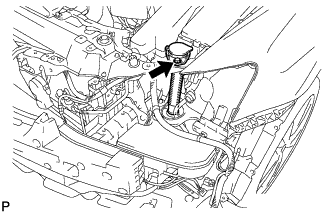

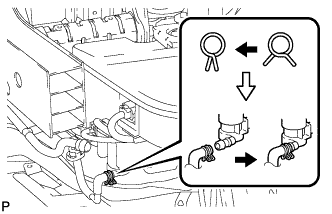

Connect the washer hose to the windshield washer motor and pump assembly and fill the washer jar with washer fluid.

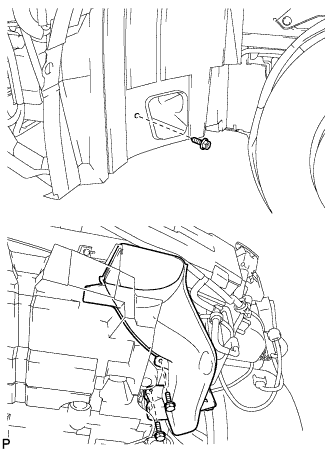

Install the No. 3 cool air intake duct sub-assembly with the 2 bolts and the screw.

Torque:

5.5 N*m{56 kgf*cm, 49 in.*lbf}

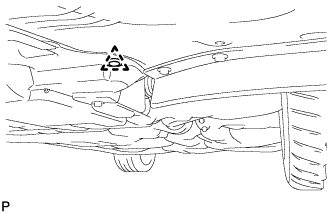

Engage the engine under cover clip.

Install the 3 front fender liner LH screws.

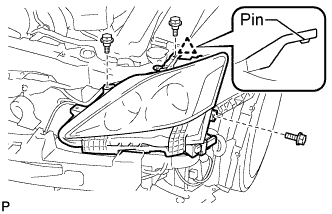

Install the headlight assembly with the headlight bracket pin.

Install the 3 bolts.

Connect the connector.

Operate the wiper, and stop the windshield wiper motor at the automatic stop position.

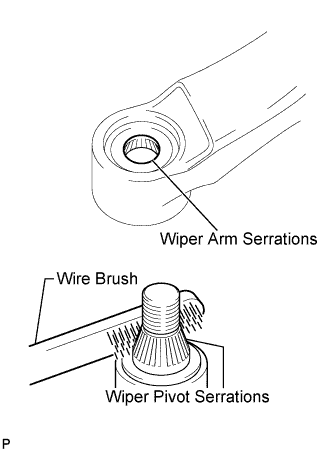

Clean the wiper arm serrations.

Clean the wiper pivot serrations with a wire brush (when reinstalling).

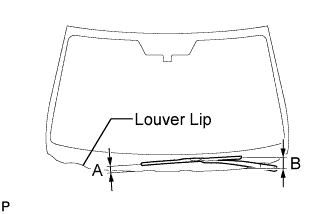

Install the front wiper arm and blade assembly LH with the nut at the position as shown in the illustration.

Torque:

22 N*m{224 kgf*cm, 16 ft.*lbf}

HINT:

Hold the arm hinge by hand to fasten the nut.

Install the side cover with the 5 clips.

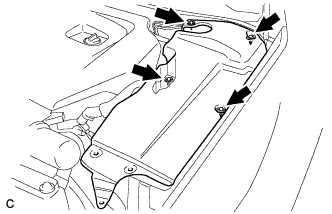

Install the side cover with the 4 clips.

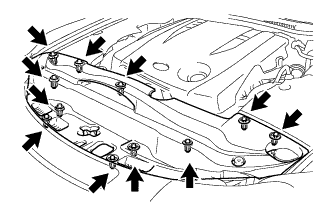

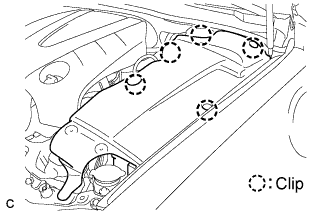

Install the intake duct seal with the 11 clips.
