Front Seat Outer Belt Assembly Removal

Restraints. Lexus Is250, Is220D. Gse20 Ale20
Seat Belt. Lexus Is250, Is220D. Gse20 Ale20

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

  2. REMOVE LAP BELT OUTER ANCHOR COVER

  3. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY

  4. REMOVE FRONT DOOR SCUFF PLATE (w/o Illumination)

  5. REMOVE FRONT DOOR SCUFF PLATE (w/ Illumination)

  6. REMOVE REAR DOOR SCUFF PLATE

  7. REMOVE LOWER CENTER PILLAR GARNISH

  8. REMOVE CENTER PILLAR GARNISH

  9. REMOVE FRONT SEAT OUTER BELT ASSEMBLY

Front Seat Outer Belt Assembly -- Removal



1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment. (Click here)


2. REMOVE LAP BELT OUTER ANCHOR COVER


    Lexus Is250, Is220D. Gse20 Ale20

  1. Disengage the 3 claws and remove the lap belt outer anchor cover.



3. DISCONNECT FRONT SEAT OUTER BELT ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

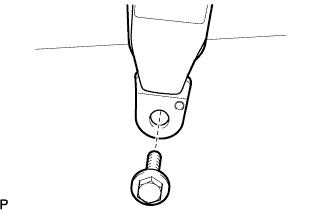

  1. Remove the bolt and disconnect the floor end of the front seat outer belt assembly.



4. REMOVE FRONT DOOR SCUFF PLATE (w/o Illumination)


    Lexus Is250, Is220D. Gse20 Ale20.Seat Belt.Occupant Detection Sensor (For Manual Seat).Front Seat Outer Belt Assembly Removal

  1. Put protective tape around the front door scuff plate.

  1. Using a moulding remover, disengage the 4 clips.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Disengage the 7 claws and remove the front door scuff plate LH.



5. REMOVE FRONT DOOR SCUFF PLATE (w/ Illumination)


    Lexus Is250, Is220D. Gse20 Ale20.Seat Belt.Occupant Detection Sensor (For Manual Seat).Front Seat Outer Belt Assembly Removal

  1. Put protective tape around the front door scuff plate.

  1. Using a moulding remover, disengage the 4 clips.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Disengage the 7 claws and remove the front door scuff plate LH.

  1. Disconnect the connector.



6. REMOVE REAR DOOR SCUFF PLATE


    Lexus Is250, Is220D. Gse20 Ale20.Seat Belt.Occupant Detection Sensor (For Manual Seat).Front Seat Outer Belt Assembly Removal

  1. Put protective tape around the rear door scuff plate.

  1. Using a moulding remover, disengage the 2 clips.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Disengage the 5 claws and remove the the rear door scuff plate LH.



7. REMOVE LOWER CENTER PILLAR GARNISH


    Lexus Is250, Is220D. Gse20 Ale20.Seat Belt.Occupant Detection Sensor (For Manual Seat).Front Seat Outer Belt Assembly Removal

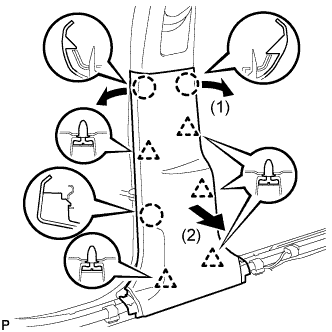

  1. Disengage the 3 claws and 5 clips, and remove the lower center pillar garnish LH.



8. REMOVE CENTER PILLAR GARNISH


    Lexus Is250, Is220D. Gse20 Ale20

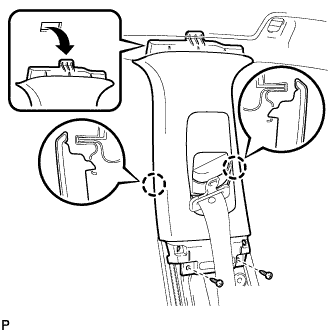

  1. Remove the 2 screws.

  1. Disengage the 2 claws and remove the center pillar garnish LH by pulling it down.



9. REMOVE FRONT SEAT OUTER BELT ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the nut and disconnect the shoulder anchor of the front seat outer belt assembly.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Using a screwdriver, pull out the locking button in the direction shown by the arrow to release the lock, and disconnect the pretensioner connector as shown in the illustration.

    HINT:
    Tape the screwdriver tip before use.

  1. Disconnect the connectors.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 2 bolts and the front seat outer belt assembly.
