Front Seat Outer Belt Assembly Installation

Check the degree of tilt when the ELR begins to lock.

1. Check that the belt does not lock at less than 15 degrees of tilt in any direction but locks at over 45 degrees of tilt while gently pulling the belt.


   NOTICE:

   Do not disassemble the retractor.

Temporarily install the front seat outer belt assembly with the 2 bolts.

Fully tighten the upper side bolt first, then the lower side bolt to install the front seat outer belt assembly.

Torque:

For upper bolt:

7.5 N*m{77 kgf*cm, 66 in.*lbf}

For lower bolt:

42 N*m{428 kgf*cm, 31 ft.*lbf}

Connect the pretensioner connector and lock the locking button as shown in the illustration.

NOTICE:

Securely lock the locking button.

Connect the connectors.

Install the shoulder anchor of the front seat outer belt assembly with the nut.

Torque:

42 N*m{428 kgf*cm, 31 ft.*lbf}

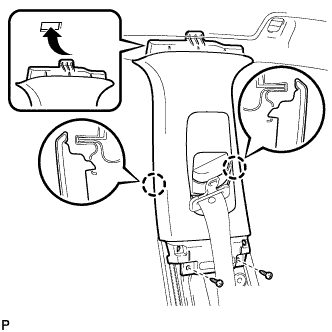

Engage the 2 claws and install the center pillar garnish LH.

Install the 2 screws.

Engage the 5 clips and 3 claws, and install the lower center pillar garnish LH.

Engage the 2 clips.

Engage the 5 claws and install the rear door scuff plate LH.

Engage the 4 clips.

Engage the 7 claws, and install the front door scuff plate LH.

Connect the connector.

Engage the 4 clips.

Engage the 7 claws, and install the front door scuff plate LH.

Install the floor end of the front seat outer belt assembly with the bolt.

Torque:

42 N*m{428 kgf*cm, 31 ft.*lbf}

Check if the ELR locks.

NOTICE:

The check should be performed with the outer belt assembly installed.

1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.


Engage the 3 claws to install the lap belt outer anchor cover.
