Restraints. Lexus Is250, Is220D. Gse20 Ale20
Seat Belt. Lexus Is250, Is220D. Gse20 Ale20
Seat Belt Control Ecu -- Installation |
| 1. INSTALL SEAT BELT CONTROL ECU |

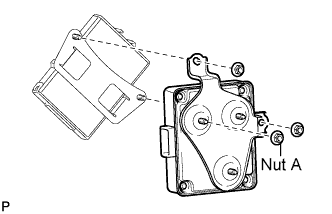

Install the clearance warning ECU to the seat belt control ECU with the 2 nuts.
- Torque:
- 5.5 N*m{56 kgf*cm, 49 in.*lbf}
 |
Temporarily install the nut A.

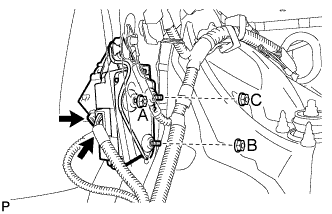

Insert loosely tightened nut A into the hole on the vehicle body (left side of the luggage compartment). Slide down the seat belt control ECU and the clearance warning ECU as a unit to temporarily install them.
 |
Insert the 2 bolts into the holes on the vehicle body and fully tighten the 3 nuts in the order of B, A, and C.
- Torque:
- 5.5 N*m{56 kgf*cm, 49 in.*lbf}
Connect the connectors.
| 2. INSTALL SIDE LUGGAGE COMPARTMENT TRIM COVER LH |
| 3. INSTALL NO. 1 LUGGAGE COMPARTMENT TRIM HOOK |
| 4. INSTALL FRONT LUGGAGE COMPARTMENT TRIM COVER |
| 5. INSTALL ROPE HOOK |
| 6. INSTALL NO. 2 ROOM LIGHT ASSEMBLY |
| 7. INSTALL REAR LUGGAGE COMPARTMENT TRIM COVER |
| 8. INSTALL ROPE HOOK ASSEMBLY |
| 9. INSTALL DECK SIDE TRIM BOX RH |
| 10. INSTALL DECK SIDE TRIM BOX LH |
| 11. INSTALL SPARE WHEEL COVER |
| 12. INSTALL NO. 2 LUGGAGE COMPARTMENT TRIM COVER |
