Child Restraint Seat Anchor Bracket Removal

Restraints. Lexus Is250, Is220D. Gse20 Ale20
Seat Belt. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY

  2. REMOVE REAR SEAT HEADREST ASSEMBLY

  3. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY

  4. REMOVE BENCH TYPE REAR SEATBACK ASSEMBLY

  5. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY

Child Restraint Seat Anchor Bracket -- Removal



1. REMOVE BENCH TYPE REAR SEAT CUSHION ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Seat Belt.Occupant Detection Sensor (For Manual Seat).Child Restraint Seat Anchor Bracket Removal

  1. Detach the 2 front hooks of the seat cushion from the vehicle body.

    NOTICE:
    Follow the instructions below carefully as the cushion frame deforms easily.

    1. Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.

    2. Repeat for the other hook.

  1. Detach the 2 rear hooks of the seat cushion from the seatback.

  1. Remove the seat cushion.



2. REMOVE REAR SEAT HEADREST ASSEMBLY


3. REMOVE REAR SEAT CENTER HEADREST ASSEMBLY


4. REMOVE BENCH TYPE REAR SEATBACK ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Seat Belt.Occupant Detection Sensor (For Manual Seat).Child Restraint Seat Anchor Bracket Removal

  1. Using a screwdriver, detach the claws to open the cap of the 3 rear seat shoulder belt guides.



    Lexus Is250, Is220D. Gse20 Ale20.Seat Belt.Occupant Detection Sensor (For Manual Seat).Child Restraint Seat Anchor Bracket Removal

  1. Using a screwdriver, detach the claw to open the cap of the 3 rear seat shoulder belt guides.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Remove the 4 bolts and rear seatback assembly.



5. REMOVE CHILD RESTRAINT SEAT ANCHOR BRACKET SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

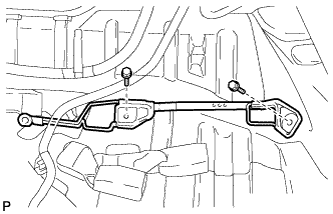

  1. Remove the 2 bolts and child restraint seat anchor bracket sub-assembly.
