Child Restraint Seat Tether Anchor Installation

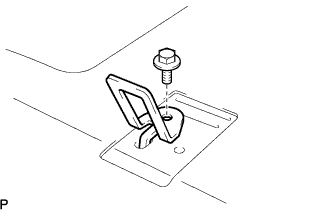

Install the 3 child restraint seat tether anchor brackets with the 3 bolts.

Torque:

21 N*m{214 kgf*cm, 16 ft.*lbf}

Connect the connector to the center stop light assembly.

Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.

Engage the 3 clips and 5 claws to install the package tray trim panel assembly and the center stop light assembly as a unit.

Engage the 4 claws to install the rear seat shoulder belt cover center.

Engage the 4 claws to install the rear seat shoulder belt cover LH.

HINT:

Use the same procedures for the RH side and the LH side.

Install the floor end of the rear seat inner with center belt assembly RH with the bolt.

Torque:

42 N*m{428 kgf*cm, 31 ft.*lbf}

NOTICE:

Do not allow the anchor part of the rear seat inner with center belt assembly RH to overlap the protruding parts of the floor panel.

Check if the ELR locks.

NOTICE:

The check should be performed with the outer belt assembly installed.

1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.


Install the floor end of the rear seat 3 point type belt assembly LH with the bolt.

Torque:

42 N*m{428 kgf*cm, 31 ft.*lbf}

NOTICE:

Do not allow the anchor part of the rear seat 3 point type belt assembly LH to overlap protruding parts of the floor panel.

HINT:

Use the same procedures for the RH side and the LH side.

Check if the ELR locks.

NOTICE:

The check should be performed with the outer belt assembly installed.

1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.


Pass the 3 rear seat belt floor anchors through the package tray trim panel assembly.

Engage the 3 clips to install the package tray trim panel assembly.

Engage the 4 claws to install the rear seat shoulder belt cover center.

Engage the 4 claws to install the rear seat shoulder belt cover LH.

HINT:

Use the same procedures for the RH side and the LH side.

Install the floor end of the rear seat inner with center belt assembly RH with the bolt.

Torque:

42 N*m{428 kgf*cm, 31 ft.*lbf}

NOTICE:

Do not allow the anchor part of the rear seat inner with center belt assembly RH to overlap the protruding parts of the floor panel.

Check if the ELR locks.

NOTICE:

The check should be performed with the outer belt assembly installed.

1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.


Install the floor end of the rear seat 3 point type belt assembly LH with the bolt.

Torque:

42 N*m{428 kgf*cm, 31 ft.*lbf}

NOTICE:

Do not allow the anchor part of the rear seat 3 point type belt assembly LH to overlap the protruding parts of the floor panel.

HINT:

Use the same procedures for the RH side and the LH side.

Check if the ELR locks.

NOTICE:

The check should be performed with the outer belt assembly installed.

1. With the belt assembly installed, check that the belt locks when it is pulled out quickly.


Engage the claw and 4 clips, and install the roof side garnish inner LH.

Engage the 5 claws and install the rear seat side garnish LH.

Engage the 2 clips.

Engage the 5 claws and install the rear door scuff plate LH.

Place the seatback in the cabin.

NOTICE:

Be careful not to damage the vehicle body.

Install the seatback with the 4 bolts.

Torque:

18 N*m{184 kgf*cm, 13 ft.*lbf}

Pass the 3 seat belts through and close the cap of the 2 rear seat shoulder belt guides.

Install the floor anchor part with the bolt.

Attach the 2 rear hooks of the seat cushion to the seatback.

Attach the 2 front hooks of the seat cushion to the vehicle body.

Confirm that the seat cushion is firmly installed.

NOTICE:

When installing the seat cushion, make sure the seat belt buckle is not under the seat cushion.
