Center Power Outlet Socket Installation

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Other System. Lexus Is250, Is220D. Gse20 Ale20

  1. INSTALL POWER OUTLET SOCKET ASSEMBLY

  2. INSTALL CONSOLE BOX

  3. INSTALL CONSOLE BOX REGISTER ASSEMBLY

  4. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY

  5. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)

  6. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)

  7. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)

  8. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)

  9. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)

  10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)

  11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)

Center Power Outlet Socket -- Installation



1. INSTALL POWER OUTLET SOCKET ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

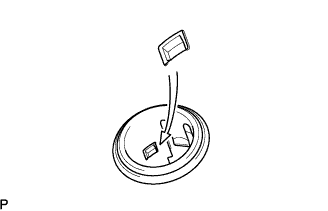

  1. Align the protrusion on the backside of the socket with the groove of the cover. Then push the socket into the cover.

  1. Connect the connector.



2. INSTALL CONSOLE BOX


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 2 claws and 2 clips.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Install the 2 bolts <C>.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Install the 2 bolts <C>.

  1. Connect the connector.



    Lexus Is250, Is220D. Gse20 Ale20.Other System.Clock.Center Power Outlet Socket Installation

  1. Connect the connectors.

  1. Engage the 2 clamps.

  1. Install the 2 bolts <C>.



3. INSTALL CONSOLE BOX REGISTER ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 2 claws and 4 clips, and then install the console box register assembly.

  1. Install the rear ash receptacle assembly.



4. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20.Other System.Clock.Center Power Outlet Socket Installation

  1. Connect the connectors.

  1. Insert the protruding parts of the front ash receptacle sub-assembly into the 2 guide holes as shown in the illustration.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Install the front ash receptacle sub-assembly with the 2 screws <F>.



5. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 6 clips.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Close the snap.



6. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission)


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 7 claws and 2 clips.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Close the snap.



7. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission)


    Lexus Is250, Is220D. Gse20 Ale20

  1. Connect the connectors.

  1. Engage the 8 clips and install the console panel sub-assembly.



8. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission)


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the claw and 2 clips, and then install the upper No. 2 console panel garnish.



9. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission)


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the claw and 2 clips, and then install the upper No. 1 console panel garnish.



10. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission)


11. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission)
