Cigarette Lighter -- Installation |
| 1. INSTALL CIGARETTE LIGHTER ASSEMBLY |

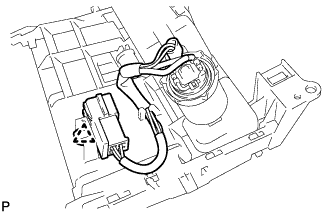

Install the cigarette lighter socket.
 |

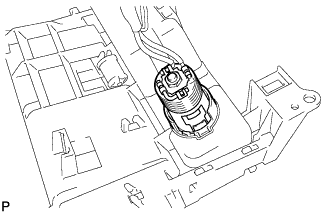

Install the cigarette lighter retainer.
 |

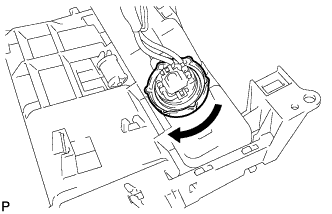

Turn the cigarette lighter nut in the direction indicated by the arrow to install it.
 |

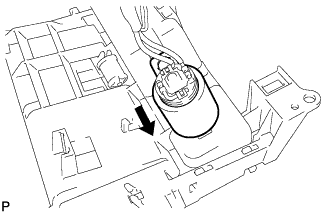

Engage the clip.
 |
| 2. INSTALL FRONT ASH RECEPTACLE SUB-ASSEMBLY |
Connect the connectors.
 |
Insert the protruding parts of the front ash receptacle sub-assembly into the 2 guide holes as shown in the illustration.
Install the front ash receptacle sub-assembly with the 2 screws <F>.
 |
| 3. INSTALL FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) |
Engage the 6 clips.
 |
Close the snap.
 |
| 4. INSTALL REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) |
Engage the 7 claws and 2 clips.
 |
Close the snap.
 |
| 5. INSTALL CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) |
Connect the connectors.
 |
Engage the 8 clips and install the console panel sub-assembly.
| 6. INSTALL UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) |
Engage the claw and 2 clips, and then install the upper No. 2 console panel garnish.
 |
| 7. INSTALL UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) |
Engage the claw and 2 clips, and then install the upper No. 1 console panel garnish.
 |
| 8. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) |
| 9. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) |
