Air Conditioning Amplifier -- Installation |
| 1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY |
Install the air conditioning amplifier with the screw and connect the connector.
 |

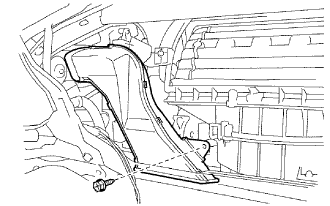

| 2. INSTALL NO.2 AIR DUCT |
Install the No. 2 air duct and screw.
- Torque:
- 5.4 N*m{55 kgf*cm, 48 in.*lbf}
 |
| 3. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY |
Connect the connectors.
 |
Engage the 2 claws.
Install the glove compartment door assembly with the 5 screws.
| 4. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY |
Connect the connector.
- NOTICE:
- When handling the airbag connector, take care not to damage the airbag wire harness.
 |
Install the front passenger side knee airbag assembly with the 3 bolts.
- Torque:
- 10 N*m{102 kgf*cm, 7 ft.*lbf}
| 5. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY |
Engage the 4 clips and install the No. 2 instrument panel under cover sub-assembly.
 |
| 6. INSTALL SIDE INSTRUMENT PANEL RH |
Engage the 5 claws and 3 clips, and then install the side instrument panel RH.
 |
| 7. INSTALL FRONT DOOR OPENING TRIM COVER RH |
Engage the 6 claws and install the front door opening trim cover RH.
 |
| 8. INSTALL FRONT DOOR SCUFF PLATE RH (w/o Illumination) |
| 9. REMOVE FRONT DOOR SCUFF PLATE RH (w/ Illumination) |
| 10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL |
| 11. PERFORM INITIALIZATION |
- NOTICE:
- Some systems need initialization after reconnecting the cable to the negative battery terminal (Click here)
| 12. INSPECT SRS WARNING LIGHT |
