Compressor And Magnetic Clutch Disassembly

Place the compressor and magnetic clutch in a vise.

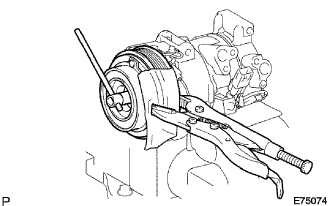

Using vise pliers, hold the magnetic clutch hub.

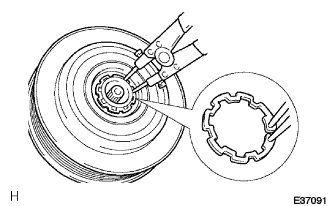

Remove the bolt, magnetic clutch hub and magnetic clutch washers.

HINT:

There is no set number of magnetic clutch washers since they are used for adjusting.

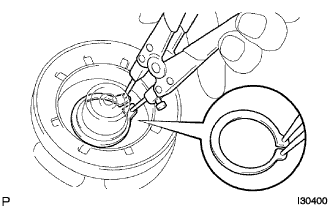

Using a snap ring expander, remove the snap ring and magnetic clutch rotor.

NOTICE:

Take care not to damage the seal cover of the bearing when removing the snap ring.

Disconnect the connector.

Remove the screw.

Using a snap ring expander, remove the snap ring and magnetic clutch stator.
