Blower Unit Disassembly

Heater & Air Conditioning System. Lexus Is250, Is220D. Gse20 Ale20
Air Conditioning. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE INLET CONTROL SERVO MOTOR

  2. REMOVE CLEAN AIR FILTER

  3. REMOVE COOLING UNIT WITH FAN MOTOR SUB-ASSEMBLY

Blower Unit -- Disassembly



1. REMOVE INLET CONTROL SERVO MOTOR


    Lexus Is250, Is220D. Gse20 Ale20.Air Conditioning.Air Conditioning System.Blower Unit Disassembly

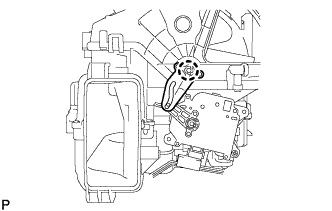

  1. Detach the claw and remove the lever.



    Lexus Is250, Is220D. Gse20 Ale20

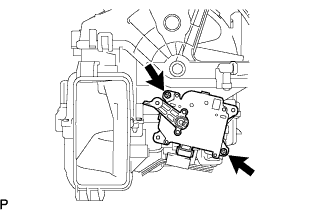

  1. Remove the 2 screws and inlet control servo motor.



2. REMOVE CLEAN AIR FILTER


    Lexus Is250, Is220D. Gse20 Ale20.Air Conditioning.Air Conditioning System.Blower Unit Disassembly

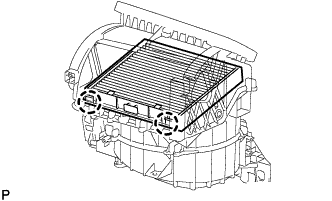

  1. Detach the 2 claws and remove the air filter.

    HINT:
    Be sure to turn the engine switch on (IG) and set the A/C to RECIRCULATION mode before removing the air filter.


3. REMOVE COOLING UNIT WITH FAN MOTOR SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

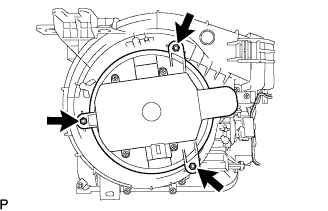

  1. Remove the 3 screws and fan motor.
