Rain Sensor Removal

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Wiper And Washer. Lexus Is250, Is220D. Gse20 Ale20

  1. REMOVE RAIN SENSOR

  2. CLEAN WINDSHIELD GLASS

Rain Sensor -- Removal



1. REMOVE RAIN SENSOR


    Lexus Is250, Is220D. Gse20 Ale20.Wiper And Washer.Wiper And Washer System.Rain Sensor Removal

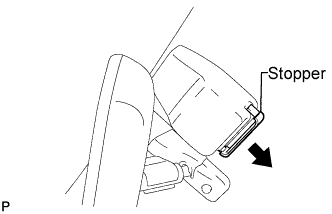

  1. Release the stopper by pulling it down.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Disconnect the connector and remove the rain sensor as shown in the illustration.



2. CLEAN WINDSHIELD GLASS
NOTICE:
  1. The rain sensor tape can be reused, however, replace it with a new one if it has dirt on it or it is damaged.
  2. Check that the rain sensor tape does not remain on the windshield glass. If it does, remove it before installing the rain sensor.
