  1. INSTALL RAIN SENSOR TAPE

  2. INSTALL RAIN SENSOR

Rain Sensor -- Installation



1. INSTALL RAIN SENSOR TAPE


    Lexus Is250, Is220D. Gse20 Ale20.Wiper And Washer.Wiper And Washer System.Rain Sensor Installation

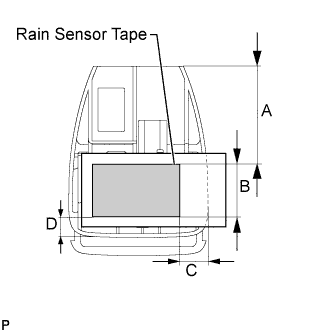

  1. Peel off the releasing sheet (yellow side) and attach the rain sensor tape on the position indicated in the illustration (the sensor part of the rain sensor) while pushing out air bubbles with fingers.

  1. Peel off the releasing sheet (white side).

    NOTICE:
    1. When reusing the rain sensor, clean up dirt on the sensor part with a cloth, etc.
    2. Do not touch the sensor tape surface directly with fingers.
    Area
    		Measurement
    A
    		45.5 mm (1.791 in.)
    B
    		24.7 mm (0.972 in.)
    C
    		10.0 mm (0.393 in.)
    D
    		9.8 mm (0.385 in.)


2. INSTALL RAIN SENSOR

  1. Connect the connector.



    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the claw as shown in the illustration to set the position.

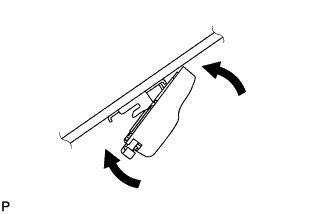

  1. Gradually attach the rain sensor to the glass surface to prevent air bubbles from forming in between them.



    Lexus Is250, Is220D. Gse20 Ale20.Wiper And Washer.Wiper And Washer System.Rain Sensor Installation

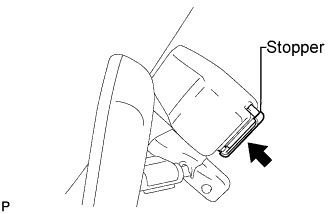

  1. Push in the stopper.

    NOTICE:
    1. Do not touch the sensor tape surface and the glass surface directly with fingers.
    2. Clean up dirt on the glass with a cloth, etc.
    3. After installing the rain sensor, there should be no air bubbles between the windshield glass and the rain sensor tape.
