Headlight Cleaner Actuator -- Removal |
| 1. REMOVE COOL AIR INTAKE DUCT SEAL |
Remove the 11 clips and intake duct seal.
 |
| 2. REMOVE FRONT BUMPER ASSEMBLY |
Using a screwdriver, turn the pin 90 degrees and remove the 2 pin hold clips.
- HINT:
- Tape the screwdriver tip before use.
- Use the same procedures for the RH side and LH side.
 |
Put protective tape around the front bumper assembly.
 |
Using a clip remover, remove the 2 clips
Remove the 2 radiator grille protectors.
Remove the bolt and 10 screws.
Disengage the 5 claws and disconnect the front bumper assembly as shown in the illustration.
- HINT:
- Use the same procedures for the RH side and LH side.
 |
Disconnect the headlight washer hose. (w/ headlight cleaner system)
Disconnect the connector and remove the front bumper assembly.
| 3. REMOVE HEADLIGHT CLEANER WASHER NOZZLE |
Extend the headlight cleaner washer nozzle.
 |

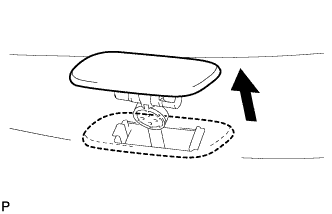

Remove the headlight cleaner washer nozzle.
- HINT:
- Use the same procedures for the RH side and the LH side.
| 4. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY |
Disconnect the headlight washer hose.
 |
Remove the bolt.

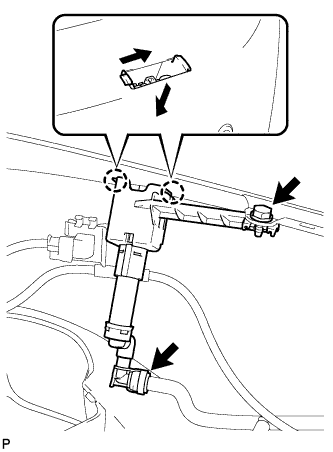

Disengage the 2 claws and remove the headlight washer actuator sub-assembly as shown in the illustration.
- HINT:
- Use the same procedures for the RH side and the LH side.
