Headlight Cleaner Actuator Installation

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Wiper And Washer. Lexus Is250, Is220D. Gse20 Ale20

  1. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY

  2. INSTALL HEADLIGHT CLEANER WASHER NOZZLE

  3. INSTALL FRONT BUMPER ASSEMBLY

  4. INSTALL COOL AIR INTAKE DUCT SEAL

Headlight Cleaner Actuator -- Installation

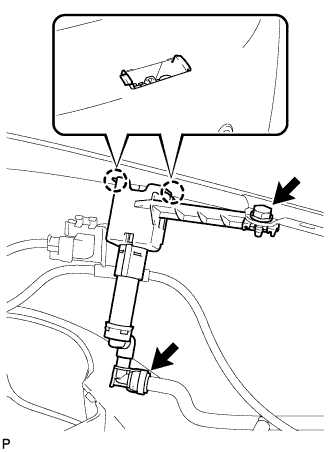

1. INSTALL HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY


    Lexus Is250, Is220D. Gse20 Ale20

  1. Engage the 2 claws.

  1. Install the headlight washer actuator sub-assembly with the bolt.

  1. Connect the headlight washer hose.

    HINT:
    Use the same procedures for the RH side and the LH side.

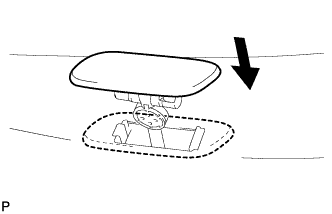

2. INSTALL HEADLIGHT CLEANER WASHER NOZZLE


    Lexus Is250, Is220D. Gse20 Ale20

  1. Install the headlight cleaner washer nozzle.

    HINT:
    Use the same procedures for the RH side and the LH side.


3. INSTALL FRONT BUMPER ASSEMBLY


4. INSTALL COOL AIR INTAKE DUCT SEAL


    Lexus Is250, Is220D. Gse20 Ale20

  1. Install the intake duct seal with the 11 clips.
