Washer Nozzle Adjustment

Body Electrical. Lexus Is250, Is220D. Gse20 Ale20
Wiper And Washer. Lexus Is250, Is220D. Gse20 Ale20

  1. ADJUST WASHER NOZZLE

Washer Nozzle -- Adjustment



1. ADJUST WASHER NOZZLE


    Lexus Is250, Is220D. Gse20 Ale20.Wiper And Washer.Wiper And Washer System.Washer Nozzle Adjustment

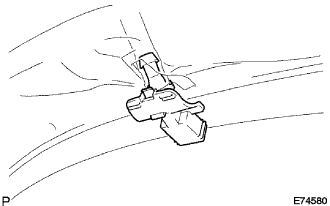

  1. Using a screwdriver, disengage the 2 claws and separate the washer nozzle.

    NOTICE:
    Be careful not to damage the windshield.


    Lexus Is250, Is220D. Gse20 Ale20

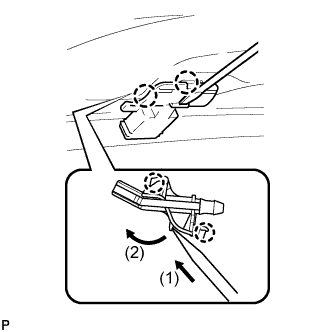

  1. Remove the washer nozzle from the washer hose.

    NOTICE:
    Washer nozzles cannot be reused.

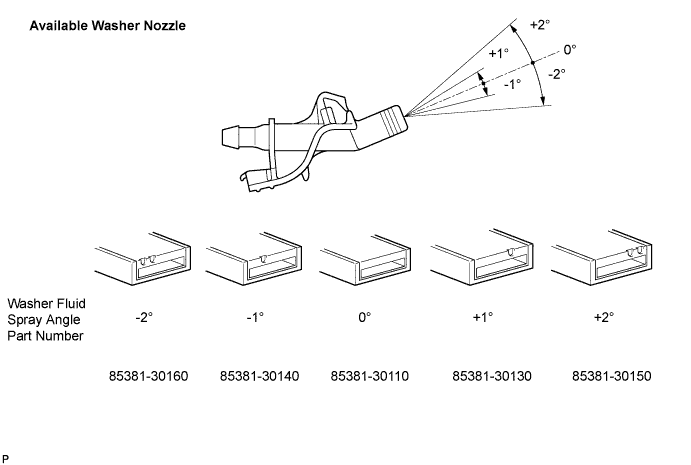

  1. Select a washer nozzle so that the contact area is within the standard. Replace the washer nozzle with the selected one.
