Light Control Rheostat Removal
Meter. Lexus Is250, Is220D. Gse20 Ale20
REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination)
REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination)
REMOVE FRONT DOOR OPENING TRIM COVER LH
REMOVE SIDE INSTRUMENT PANEL LH
REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY
REMOVE LIGHT CONTROL RHEOSTAT
Light Control Rheostat -- Removal |
| 1. REMOVE FRONT DOOR SCUFF PLATE LH (w/o Illumination) |
Put protective tape around the front door scuff plate.
Using a moulding remover, disengage the 4 clips.
Disengage the 7 claws and remove the front door scuff plate LH.
| 2. REMOVE FRONT DOOR SCUFF PLATE LH (w/ Illumination) |
Put protective tape around the front door scuff plate.
Using a moulding remover, disengage the 4 clips.
Disengage the 7 claws and remove the front door scuff plate LH.
Disconnect the connector.
| 3. REMOVE FRONT DOOR OPENING TRIM COVER LH |
Disengage the 6 claws and remove the front door opening trim cover LH.
| 4. REMOVE SIDE INSTRUMENT PANEL LH |
Using a moulding remover, disengage the 5 claws and 3 clips, and then remove the side instrument panel LH.
| 5. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY |
Disengage the 7 clips.
Disconnect the connectors and remove the lower instrument panel finish panel sub-assembly.
| 6. REMOVE LIGHT CONTROL RHEOSTAT |

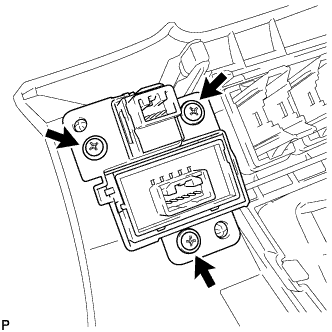

Remove the 3 screws and the finish panel No. 2 retainer with switch.

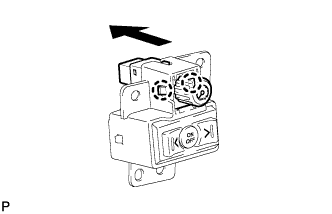

Disengage the 2 claws and remove the light control rheostat from the finish panel No. 2 retainer.
