Engine Switch -- Removal |
| 1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Automatic Transmission) |
Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.
 |
| 2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transmission) |
Turn the shift lever knob counterclockwise and remove the shift lever knob sub-assembly.
 |
| 3. REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (for Automatic Transmission) |
Using a moulding remover, disengage the claw.
 |
Pull the upper No. 1 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove it.
 |
| 4. REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (for Automatic Transmission) |
Using a moulding remover, disengage the claw.
 |
Pull the upper No. 2 console panel garnish in the direction indicated by the arrow to disengage the 2 clips and remove it.
 |
| 5. REMOVE CONSOLE PANEL SUB-ASSEMBLY (for Automatic Transmission) |
Disengage the 8 clips.
 |
Disconnect the connectors and remove the console panel sub-assembly.
| 6. REMOVE REAR CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) |
Open the snap.
 |
Disengage the 7 claws and 2 clips, and then remove the rear console panel sub-assembly.
 |
| 7. REMOVE FRONT CONSOLE PANEL SUB-ASSEMBLY (for Manual Transmission) |
Open the snap.
 |
Pull the front console panel sub-assembly in the direction indicated by the arrow to disengage the 6 clips and remove it.
 |
| 8. REMOVE FRONT ASH RECEPTACLE SUB-ASSEMBLY |
Remove the 2 screws <F>.
 |
Pull the front ash receptacle sub-assembly in the direction indicated by the arrow to disconnect the connectors and remove it.
 |
| 9. REMOVE CONSOLE BOX REGISTER ASSEMBLY |
Remove the rear ash receptacle assembly.
 |
Disengage the 2 claws and 4 clips, and then remove the console box register assembly.
| 10. REMOVE CONSOLE BOX |
Remove the 2 bolts <C>.
 |
Disconnect the 2 connectors.
Disengage the 2 clamps.
Remove the 2 bolts <C>.
 |
Disconnect the connector.
Remove the 2 bolts <C>.
 |
Disengage the 2 claws and 2 clips, and then remove the console box.
 |
| 11. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY |
Using a screwdriver, disengage the 4 claws.
- HINT:
- Tape the screwdriver tip before use.
 |
Apply protective tape to the areas shown in the illustration.
 |
Using a moulding remover, disengage the 4 claws starting from the right of the No. 3 instrument panel register assembly. Disengage the remaining 3 claws by pulling the No. 3 instrument panel register assembly by hand.
- NOTICE:
- Do not pry the lower part of the No. 3 instrument panel register assembly. Doing so may damage the assembly.
 |
Disconnect the connectors.
| 12. REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL |
Disengage the 4 claws and remove the center lower instrument cluster finish panel.
 |
| 13. REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) |
Remove the 4 bolts.
 |
Pull the integration control panel w/ radio receiver assembly toward the rear of the vehicle.
Disconnect each connector and remove the panel.
| 14. REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) |
Remove the 4 bolts.
 |
Pull the multi-display w/ radio receiver assembly toward the rear of the vehicle.
Disconnect each connector and remove the multi-display.

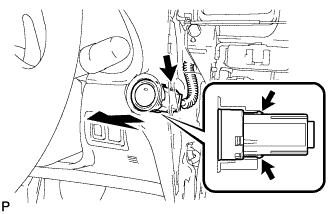

| 15. REMOVE ENGINE SWITCH |
Disconnect the switch connector.
 |
Detach the 2 claws and remove the switch.
