Radio Antenna Cord Installation

Install the antenna cord sub-assembly with the 3 bolts.

Engage the 19 clamps.

Connect the connectors.

Install the antenna cord sub-assembly with the 3 bolts.

Engage the 19 clamps.

Connect the connectors.

Engage the 3 clamps.

Connect the connectors.

Place the seatback in the cabin.

NOTICE:

Be careful not to damage the vehicle body.

Install the seatback with the 4 bolts.

Torque:

18 N*m{184 kgf*cm, 13 ft.*lbf}

Pass the 3 seat belts through and close the cap of the 2 rear seat shoulder belt guides.

Install the floor anchor part with the bolt.

Attach the 2 rear hooks of the seat cushion to the seatback.

Attach the 2 front hooks of the seat cushion to the vehicle body.

Confirm that the seat cushion is firmly installed.

NOTICE:

When installing the seat cushion, make sure the seat belt buckle is not under the seat cushion.

Engage the clamp and install the No. 2 antenna cord sub-assembly.

Engage the 5 claws.

NOTICE:

Do not allow the wire harness to get caught in the claws.

Engage the 2 clamps.

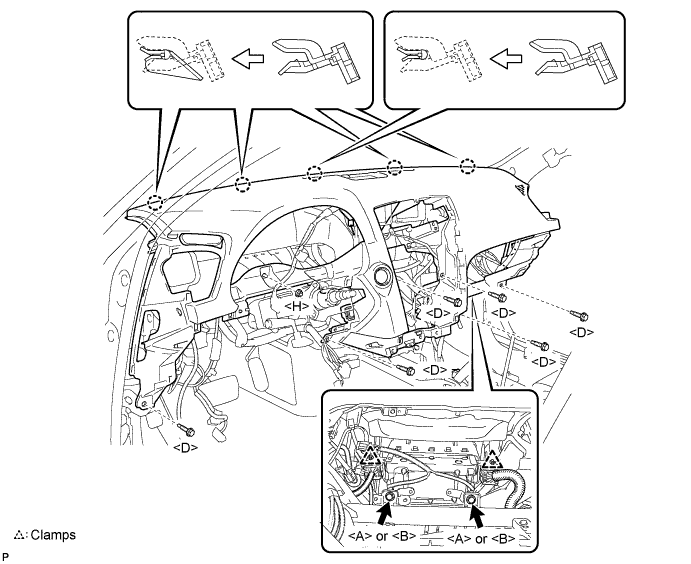

Install the 2 passenger airbag bolts <A> or <B>.

Torque:

20 N*m{204 kgf*cm, 15 ft.*lbf}

Install the 6 bolts <D> and nut <H>.

Engage the 2 claws and install the cooler thermistor.

Engage the clamps.

Connect the connectors and install the instrument panel safety pad assembly.

Install the No. 2 console box duct with the clip.

Install the No. 1 console box duct with the clip.

Install the No. 2 console box duct with the 2 clips.

Connect the connector.

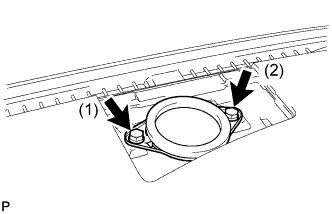

Install the front stereo component speaker assembly with the 2 bolts.

HINT:

Install the bolts in the order shown in the illustration.

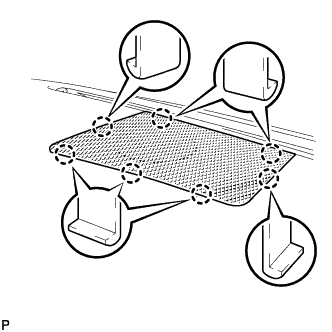

Engage the 7 claws and install the No. 3 instrument panel speaker panel sub-assembly.

Connect the connector.

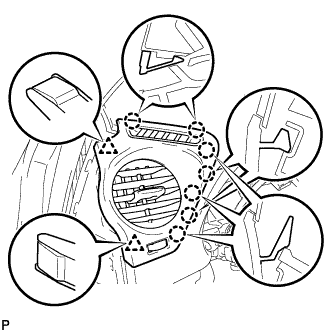

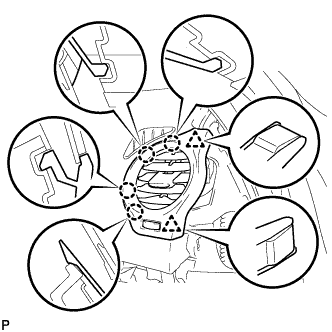

Engage the 4 claws and 2 clips, and install the No. 2 instrument panel register assembly.

Connect the connector.

Engage the 7 claws and 2 clips, and install the No. 1 instrument panel register assembly.

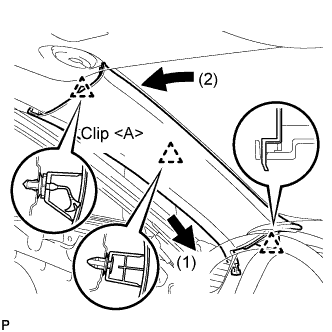

Install a new clip <A> on the front pillar garnish LH.

Engage the claw and 2 clips, and install the front pillar garnish LH.

Connect the connectors.

Engage the 2 claws.

Install the glove compartment door assembly with the 5 screws.

Connect the connector.

NOTICE:

When handling the airbag connector, take care not to damage the airbag wire harness.

Install the front passenger side knee airbag assembly with the 3 bolts.

Torque:

10 N*m{102 kgf*cm, 7 ft.*lbf}

Engage the 4 clips and install the No. 2 instrument panel under cover sub-assembly.

Engage the 5 claws and 3 clips, and then install the side instrument panel RH.

Engage the 6 claws and install the front door opening trim cover RH.

Connect the connectors.

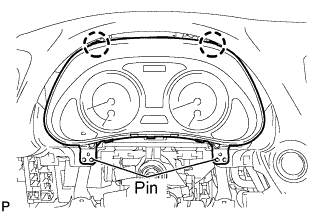

Engage the 2 pins.

Engage the 2 claws and install the combination meter assembly.

Install the instrument cluster finish panel sub-assembly with the 2 screws and 2 clips.

Connect the connector.

NOTICE:

When handling the airbag connector, take care not to damage the airbag wire harness.

Install the driver side knee airbag assembly with the 4 bolts.

Torque:

10 N*m{102 kgf*cm, 7 ft.*lbf}

Connect the connectors.

Engage the 7 clips and install the lower instrument panel finish panel sub-assembly.

Connect the connectors.

Insert the No. 1 instrument panel under cover sub-assembly into the guide as shown in the illustration.

Engage the 2 claws.

Install the No. 1 instrument panel under cover sub-assembly with the 2 screws <E>.

Engage the 5 claws and 3 clips, and then install the side instrument panel LH.

Engage the 6 claws and install the front door opening trim cover LH.

Engage the 4 clips.

Engage the 7 claws, and install the front door scuff plate LH.

Connect the connector.

Engage the 4 clips.

Engage the 7 claws, and install the front door scuff plate LH.

Install the turn signal switch assembly with spiral cable sub-assembly to the steering column assembly with the clamp.

Engage the claw to install the upper steering column cover.

Engage the 4 clips to install the steering column cover upper onto the instrument panel cluster finish panel.

Engage the 2 claws to install the lower steering column cover.

Install the 2 screws.

Torque:

2.0 N*m{20 kgf*cm, 18 in.*lbf}

Engage the claw to install the steering column cover upper.

Engage the 4 clips to install the steering column cover upper onto the instrument panel cluster finish panel.

Engage the 2 claws to install the steering column cover lower.

NOTICE:

Do not damage the tilt and telescopic switch.

Install the 3 screws.

Torque:

2.0 N*m{20 kgf*cm, 18 in.*lbf}

Check that the engine switch is off.

Check that the battery negative (-) terminal is disconnected.

CAUTION:

After removing the terminal, wait for at least 90 seconds before starting the operation.

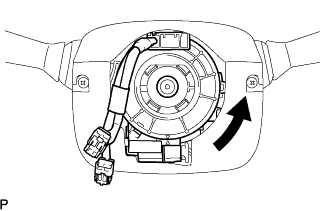

Rotate the spiral cable with steering sensor counterclockwise slowly by hand until it feels firm.

NOTICE:

Do not turn the spiral cable with steering sensor by the airbag wire harness.

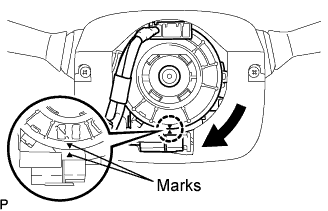

Rotate the spiral cable with steering sensor clockwise approximately 2.5 turns to align the marks.

NOTICE:

Do not turn the spiral cable with spiral sensor by the airbag wire harness.

HINT:

The spiral cable with steering sensor will rotate approximately 2.5 turns to both the left and right from the center.

Align the matchmarks on the steering wheel assembly and steering main shaft assembly.

Install the steering wheel assembly set nut.

Torque:

50 N*m{510 kgf*cm, 37 ft.*lbf}

Support the steering pad with one hand as shown in the illustration.

Connect the 2 connectors to the steering pad.

NOTICE:

When handling the airbag connector, take care not to damage the airbag wire harness.

Connect the horn connector.

Confirm that the circumference groove of the "torx" screw fits in the screw case, and place the steering pad onto the steering wheel assembly.

Using a "torx" socket wrench (T30), tighten the 2 "torx" screws.

Torque:

8.8 N*m{90 kgf*cm, 78 in.*lbf}

Install the steering wheel No.3 cover lower.

Install the steering wheel No.2 cover lower.

Connect each connector.

Install the integration control panel w/ radio receiver assembly with the 4 bolts.

Connect each connector.

Install the the multi-display w/ radio receiver assembly with the 4 bolts.

Engage the 4 claws and install the center lower instrument cluster finish panel.

Connect the connectors.

Engage the 11 claws and install the No. 3 instrument panel register assembly.

Engage the 2 claws and 2 clips.

Install the 2 bolts <C>.

Install the 2 bolts <C>.

Connect the connector.

Connect the connectors.

Engage the 2 clamps.

Install the 2 bolts <C>.

Engage the 2 claws and 4 clips, and then install the console box register assembly.

Install the rear ash receptacle assembly.

Connect the connectors.

Insert the protruding parts of the front ash receptacle sub-assembly into the 2 guide holes as shown in the illustration.

Install the front ash receptacle sub-assembly with the 2 screws <F>.

Engage the 6 clips.

Close the snap.

Engage the 7 claws and 2 clips.

Close the snap.

Connect the connectors.

Engage the 8 clips and install the console panel sub-assembly.

Engage the claw and 2 clips, and then install the upper No. 2 console panel garnish.

Engage the claw and 2 clips, and then install the upper No. 1 console panel garnish.

With the steering pad installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the steering pad with a new one:

1. Cuts, minute cracks or marked discoloration on the steering pad top surface or in the grooved portion.


Make sure that the horn sounds.

HINT:

If the horn does not sound, inspect the horn system (Click here).
