Air Conditioning System System Diagram
Air Conditioning System -- System Diagram |

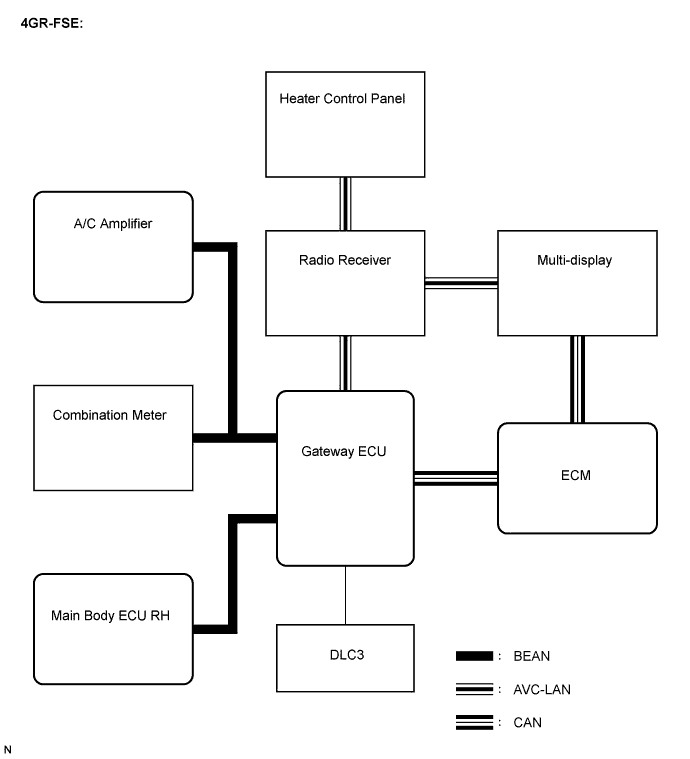

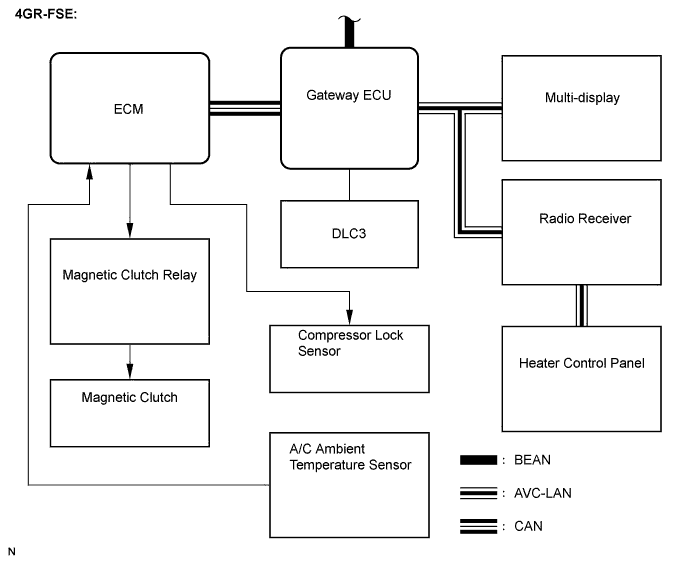

4GR-FSE:Transmitter
| Receiver
| Line
| Signal
|
A/C Amplifier
| ECM
| BEAN / CAN
| Heater Relay Control Signal
|
Magnetic Clutch Control Signal
|
Rear DEF Relay Control Signal
|
Idle Up Request Signal
|
Heater Valve Open Signal
|
PTC Driving Number Request Signal
|
Outside Temperature Data
|
A/C Pressure Sensor Signal
|
External Variable Control Solenoid Current Signal
|
A/C Amplifier
| Combination Meter
| BEAN
| Outside Temperature Data
|
A/C Amplifier
| Multi-display (w/ Navigation System), Heater Control Panel (w/o Navigation System)
| BEAN / AVC-LAN
| EMV-Indicator
|
EMV-Temp. Indication
|
A/C Amplifier
| Main Body ECU RH
| BEAN
| Diagnostic Tool Response
|
ECM
| A/C Amplifier
| BEAN / CAN
| Engine Speed Signal
|
Engine Coolant Temperature Signal
|
Outside Temperature Data
|
Inhalation of Air Temperature Data
|
A/C Compressor Lock Control Signal
|
Recycle Mode Switching Request
|
A/C Control Cut Signal
|
Variable Control Prohibition Signal
|
A/C-E/G Cooperation Control
|
PTC Heater Permission Number
|
Main Body ECU RH
| A/C Amplifier
| BEAN
| Diagnostic Tool Request
|
Diagnostic Erase Signal
|
Combination Meter
| A/C Amplifier
| BEAN
| Vehicle Speed Signal
|
Multi-display (w/Navigation System), Heater Control Panel (w/o Navigation System)
| A/C Amplifier
| BEAN / AVC-LAN
| A/C Operation Signal
|

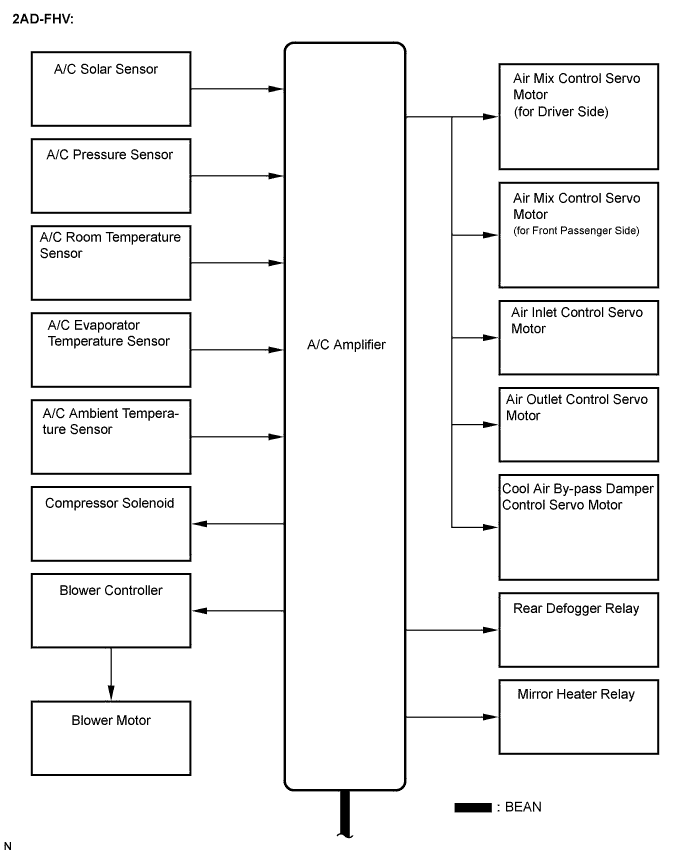

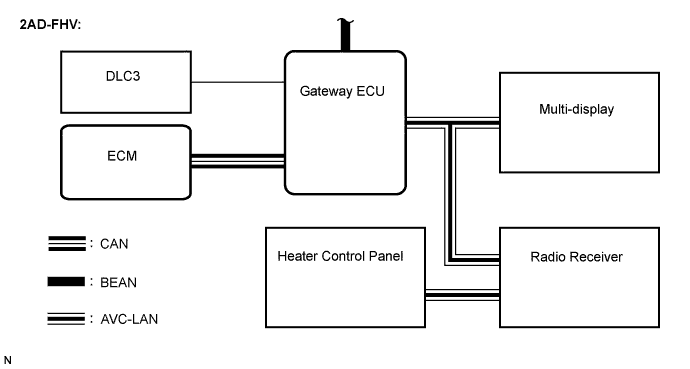

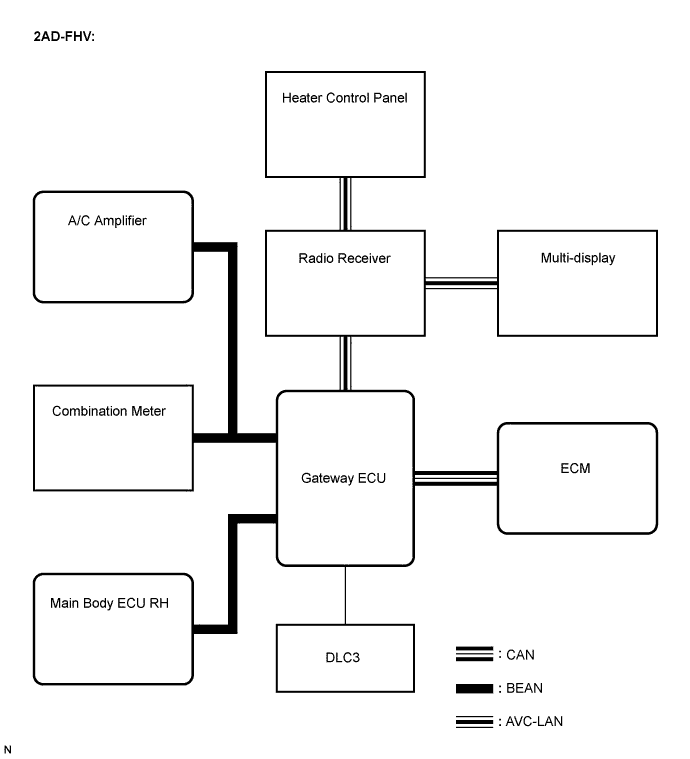

2AD-FHV:Transmitter
| Receiver
| Line
| Signal
|
A/C Amplifier
| ECM
| BEAN / CAN
| Heater Relay Control Signal
|
Rear DEF Relay Control Signal
|
Idle Up Request Signal
|
Heater Valve Open Signal
|
A/C Pressure Sensor Signal
|
Max. HOT Signal
|
A/C Amplifier
| Combination Meter
| BEAN
| Outside Temperature Data
|
A/C Amplifier
| Multi-display (w/ Navigation System), Heater Control Panel (w/o Navigation System)
| BEAN / AVC-LAN
| EMV-Indicator
|
EMV-Temp. Indication
|
A/C Amplifier
| Main Body ECU RH
| BEAN
| Diagnostic Tool Response
|
ECM
| A/C Amplifier
| BEAN / CAN
| Engine Speed Signal
|
Engine Coolant Temperature Signal
|
A/C Control Cut Signal
|
Variable Control Prohibition Signal
|
A/C-E/G Cooperation Control
|
Main Body ECU RH
| A/C Amplifier
| BEAN
| Diagnostic Tool Request
|
Diagnostic Erase Signal
|
Combination Meter
| A/C Amplifier
| BEAN
| Vehicle Speed Signal
|
Multi-display (w/ Navigation System), Heater Control Panel (w/o Navigation System)
| A/C Amplifier
| BEAN / AVC-LAN
| A/C Operation Signal
|
