Differential Pressure Sensor Installation

Connect the No. 1 vacuum transmitting hose and No. 2 vacuum transmitting hose.

HINT:

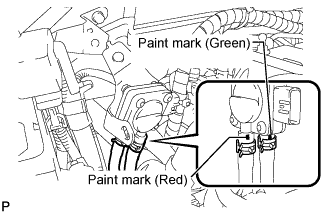

1. Be sure to align the paint marks on the vacuum transmitting hoses to the marks on the differential pressure sensor connector.

2. The tabs on the clips should be aligned with the paint marks.

3. Only use water as a lubricant for hose installation.


Install the differential pressure sensor with the nut.

Torque:

8.0 N*m{82 kgf*cm, 71 in.*lbf}

Connect the differential pressure sensor connector.
